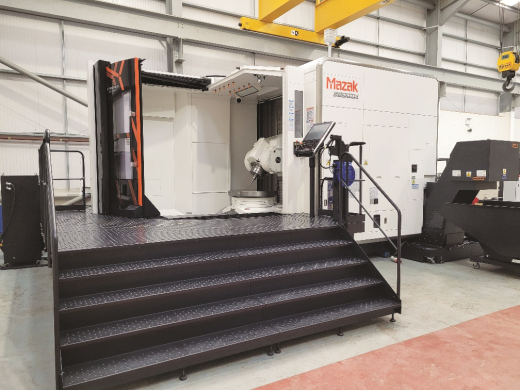

MAZAK Integrex I-800V/8S. New 2021. As new condition

Photo 1

Photo 2

Photo 3

Photo 4

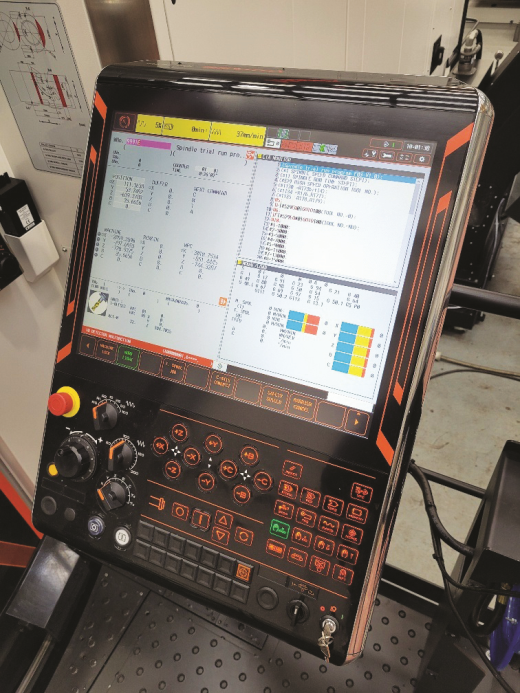

Mazatrol Smooth X
5-Axis Simultaneous
X-axis: 1,700mm
Y-axis: 1,665mm
Z-axis: 1,150mm
B-axis: 150° (-30°/+120°)
C-axis: 360°

Max workpiece dia: 1,700mm

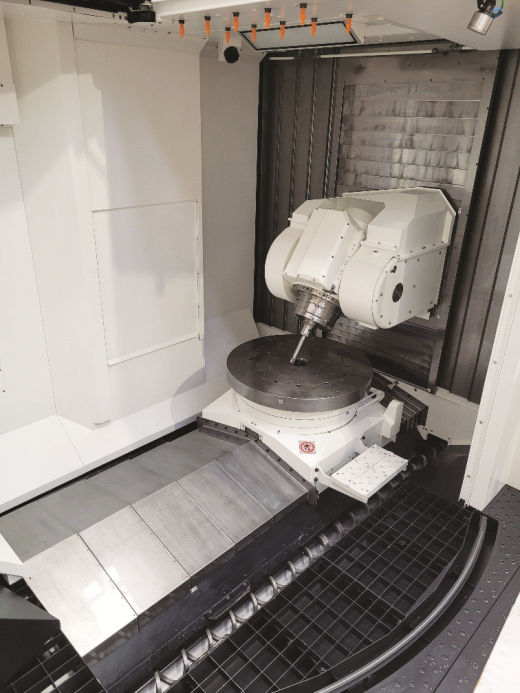

NC Rotary Table
Motor output: 45kW
Max torque: 3,120Nm
Max speed: 500rpm
C-axis 0.0001°, 50rpm
1,000mm dia location bore tap pallet
Scale feedback C-axis

Milling Spindle
Motor output: 56/45kW
Max spindle speed: 15,000rpm
HSK-T100
B-axis: 0.0001°

Tool Magazine / ATC
120 tools
Max tool dia: 125/250mm
Max tool length: 650mm
Max tool weight: 30kg
Tool ID magazine panel

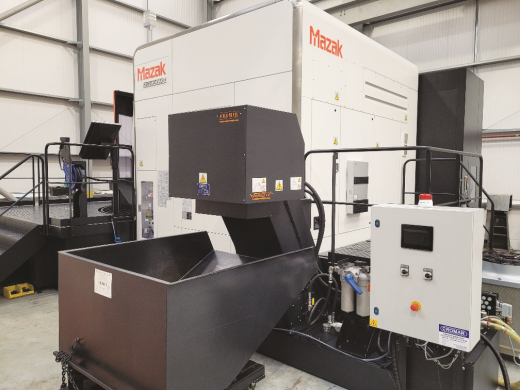

Coolant System and
Swarf Conveyor
Cromar Series IV 70 bar Swarf Management System
Increased capacity tank
Mazak NC Gage Multi-
Tasking Paket
Renishaw RMP 600
Manual pulse generator
Workpiece air blast
Integrated camera spin
window & wash gun
Mist extractor

Many software options included

This machine is available to be seen under power at our showroom in Ashton under Lyne.

POA

Category: Machining centres

Seller's location: Cheshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Feb 2023
