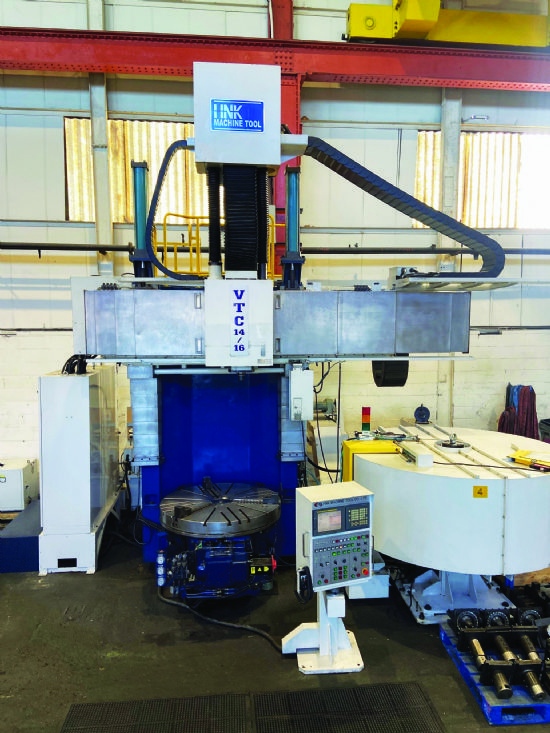

HNK VTC-14/16 Vertical Turning & Milling Centre with Elevating Rail

Photo 1

Photo 2

Photo 3

Photo 4

New 2010.
Fanuc 18i-TB Colour CNC control system,
ram size 240mm x 240mm,
table size 1,400mm (combination 4-jaw manual & 3-jaw hydraulic),
max swing & turning dia 1,600mm,
max turning height with std tool holder 1,200mm,
main table drive 45kW (60hp),
max table load 8,000kg,
table speeds 1-360rpm (2 ranges 1-90rpm & 90-360rpm),
milling spindle speeds 15-1,500rpm,
milling spindle power 18.5kW,
X-axis travel 1,900mm (-200mm/+1,700mm),
Z-axis travel 900mm,
24-station auto tool changer (12 turning & 12 milling),
elevating rail 750mm (3× 250mm positions),
approx machine dimensions 6.3m x 4.5m x 5.8m,
machine weight 36 tons (in total),
swarf conveyor,
high-pressure thru-tool coolant and bed wash,
tool setter,
3-stage traffic light status beacon

Category: Lathes - CNC Vertical

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 11 Apr 2023
