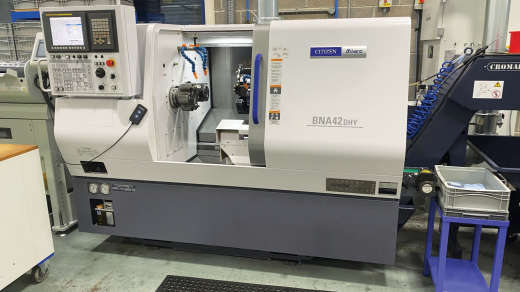

2021 MIYANO BNA-42DHY3 7-Axis Turning Centre

Photo 1

Photo 2

Photo 3

Photo 4

Fanuc Series Oi-TF,
max machining dia of bar work SP1/SP2 42/34mm,
max machining length 150mm,
power chuck SP1/SP2 5in/4in,
collet chuck type SP1 Hardinge S20, DIN173E, B&S#22D, JPN34, Hainbuch SP2 DIN173E, B&S#22D JPN,
spindle nose SP1/SP2 special flat type,
spindle motor (15min. rating/cont.) SP1 7.5/5.5kW, SP2 5.5/3.7kW,
spindle speed range SP1 60-6,000min-1, SP2 50-5,000min-1,
type of turret SP1 8-stn turret, SP2 6-stn turret,
shank height of square turning tool 20mm,
diameter of drill shank 25mm,
turret indexing & clamp method AC servo motor & curvic coupling,
slide stroke X1-axis 140mm,
Z1-axis 235mm,
Y-axis 70mm (±35),
X2-axis 140mm,
Z2-axis 360mm,
indexing time 0.2 sec/1-stn,
revolving tools,
max number of revolving tools SP1/SP2 8/—,
tool spindle speed range 50-5,000min-1,
revolving tool motor 2.8/1.0kW,
Iemca Boss 555-21 bar feed

Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Aug 2023
