2013 HACO TUR630MN/1000

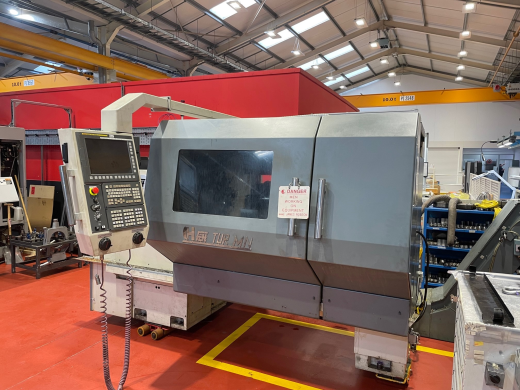

Photo 1

Photo 2

Photo 3

Photo 4

CNC Turning Centre


Fanuc 32i control
Maximum swing over bed Ø630 mm
Maximum swing over saddle Ø 370 mm
Distance between centres 1000 mm
Maximum weight in chuck only 600 kg
Maximum weight b/c ( no steady ) 2000 kg
Spindle speeds ( 2 range auto ) 2:430 & 200:2500 rpm
Spindle motor 18.5 kW
Max. turning torque 2100 N.m
Spindle nose ( DIN55029 ) D1-8
Spindle bore 105 mm
Chuck sizes ( 2 chucks ) Ø500mm (ind) & Ø315 mm (s/c)
Chuck change-over system Camlock
Axis stroke ( X ) 390 mm
Rapid traverse speed ( X / Z ) 8 M/min
Feed force – transverse 10 kN
Feed force - longitudinal 15 kN
Weight of machine 4250 kg
Length of machine 2995 mm
Length of machine + chip conveyor 4395 mm
Machine height 2100 mm
Machine width 2500 mm
Quill diameter Ø100 mm
Quill taper MT5
Quill stroke 200 mm
STEADY
Capacity ( manual ) Ø10 – 180 mm
Dynamic capacity – bearing 1600 kg
Maximum roller revolution 5500 rpm
Roller steady weight 56 kg
Automatic lubrication system
2 chucks as detailed above – Camlock fixing
Sauter 8 station turret – VDI 40 – turn only
Multifix Size C tool post
Spindle speed - auto gear changeover
Tailstock – manual with quick coupling
Fanuc 32i CNC control
Rotating / movable operator panel
Manual pulse generator – easy setting hand wheel
RS232C and/or Ethernet connection
15” CNC control panel screen
Programme re-start function
Variable speed threading
Roller steady as detailed above
3 colour operator call lamp
Work light
Single front door for improved visibility
Colour RAL 7031/7044
Coolant system
Chip conveyor
12" 3-jaw chuck
20" 4-jaw chuck
Large tooling package

Category: Lathes - flatbed

Seller's location: Surrey, UK
