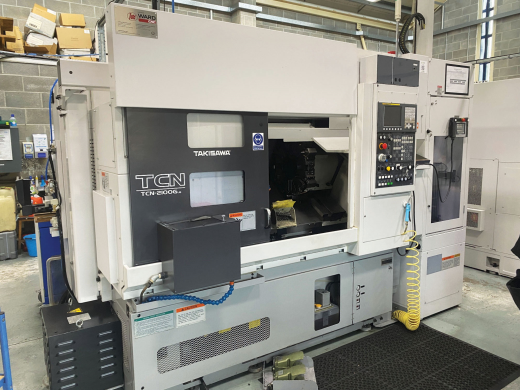

2017 TAKISAWA Japan TCN-2100 GL6 CNC Lathe with Gantry Loader

Photo 1

Photo 2

Photo 3

Photo 4

Fanuc OiTF,
max swing 400mm,
max turning dia T8 281 / T12 221mm,
max turning length 600mm,
chuck size 8in,
spindle speeds ~5,000rpm,
spindle nose A2-6,
through hole 63mm,
bearing inside 100mm,
travels X-axis 230, Z-axis 650mm,
rapid speeds X=24, Z=30m/min,
12-station tool turret,
tool size OD 25mm,
tool size ID 32mm,
spindle drive (30 min/cont.) 11 / 9kW,
X-axis servo motor 1.2kW,
Z-axis servo motor 2.5kW,
hydraulic motor 1.5kW,
coolant pump motor 0.25kW,
gantry loader specs: max outer dia of workpiece 160mm,
max workpiece length 100mm,
max workpiece weight 2 x 3kg,
work gripper: hand type 2 x 3-jaw,
gantry travel: vertical 690mm, longitudinal 1,450mm.
£75,000

Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
