NOBLE AND LUND 10Ft Square Rotary Table

Photo 1

Photo 2

Photo 3

Photo 4

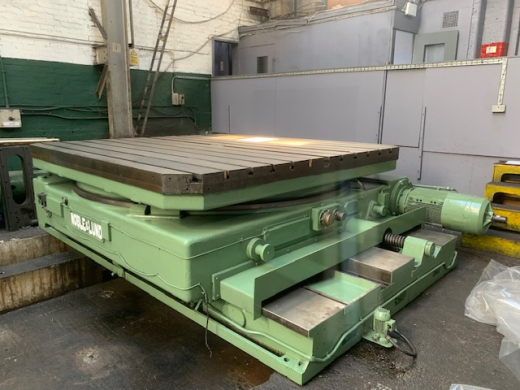

120 x 120? square rotary table with 48? longitudinal travel, longitudinal and rotational feeds and creep feed. All feeds are reversible. 40 ton workpiece capacity. 20.1/2 HP main motor.

Floor space required: 19 ft 2? x 14 ft 6? (280 sq ft)

Hand wheels for both longitudinal and rotational movement. The table is provided with power locking at four indexing 90 degree positions by engaging plungers. Full specification and drawings on request.

Inspection under power available by appointment.

Category: Surface Tables & Bed Plates

Seller's location: Northants, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 6 Jul 2023
