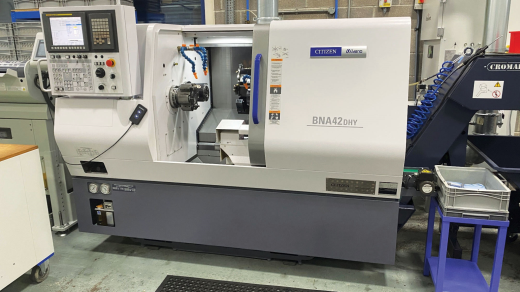

2021 MIYANO BNA-42DHY3 7-Axis Turning Centre

Photo 1

Photo 2

Photo 3

Photo 4

Fanuc Series Oi-TF
Maximum Machining Diameter of Bar Work SP1/SP2 ø42/34mm
Maximum Machining Length 150mm
Power Chuck SP1/SP2 5?/4?
Collet Chuck Type SP1 Hardinge S20, DIN173E, B&S#22D, JPN34, Hainbuch SP2 DIN173E, B&S#22D JPN
Spindle
Spindle Nose SP1/SP2 Special Flat Type
Spindle motor (15min. Rating/Cont.) SP1 7.5/5.5kW
SP2 5.5/3.7kW
Spindle Speed Range SP1 60 – 6,000min-1
SP2 50 – 5,000min-1
Turret
Type of Turret SP1 8St.Turret
SP2 6St.Turret
Shank Height of Square Turning Tool ?20mm
Diameter of Drill Shank ø25mm
Turret Indexing & Clamp Method AC Servo motor & curvic coupling
Slide Stroke X1 axis 140mm
Z1 axis 235mm
Y axis 70mm(±35)
X2 axis 140mm
Z2 axis 360mm
Indexing Time 0.2Sec./1St.
Revolving Tools
Maximum Number of Revolving Tools SP1/SP2 8/—
Tool Spindle Speed Range 50 – 5,000min-1
Revolving Tool Motor 2.8/1.0kW
Iemca Boss 555-21 barfeed
Absolent A.MIST Fume extractor
Crowther Combi 500 Swarf Conveyor
(701591)


Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Oct 2025
