Harrison M500 Gap Bed Centre Lathe L30314.01

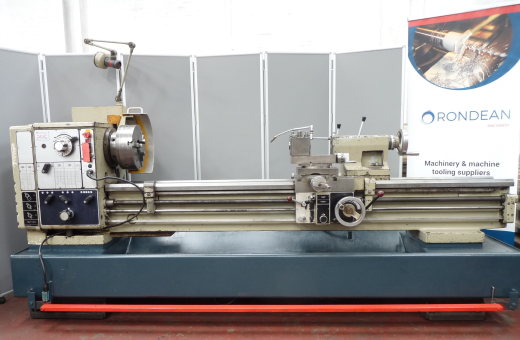

Photo 1

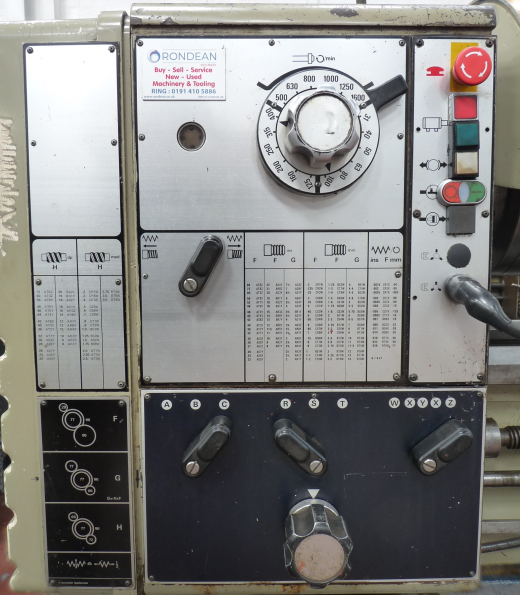

Photo 2

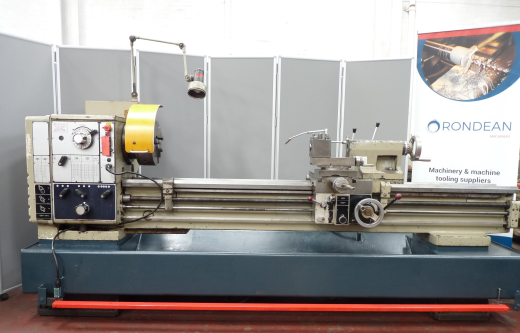

Photo 3

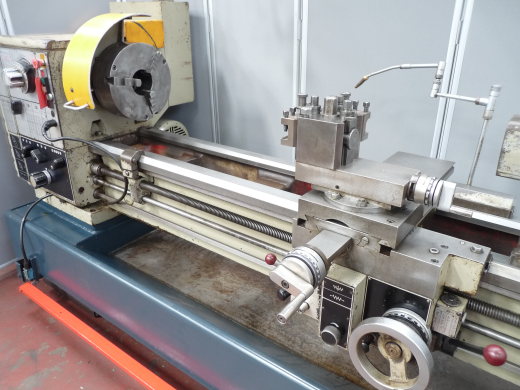

Photo 4

For latest offer please call on 0191 410 5886

Manufacturer
Harrison

Model
M500 2 metre gap bed centre lathe

Distance between centres
80” (2000mm)

Height of centres
10 ¼” (260mm)

Swing over bed
21” (530mm)

Swing in Gap
28 ¾” (730mm)

Gap piece length
7 7/8” (200mm)

Swing over cross slide
14 ½” (370mm)

Spindle Nose
D1-8” Camlock

Spindle Bore
3 1/8” (80 mm)

Speeds
18 of: 31-1600 RPM

Tailstock Spindle Taper
5 Morse Taper

Equipment
3 Jaw Chuck
Quick Change Tool Post
2 tool holders
Coolant
Dual Dials
Low Volt Lighting

Safety
Interlocking Chuck Guard
Safety Kick Stop

Motor Size
12 ½ Horse Power (9.2 kW)

Power
Three Phase Electric's

Category: Lathes - general

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 May 2025
