Dominion BAA Interchangeable and Chisel Mortiser - L20909.08

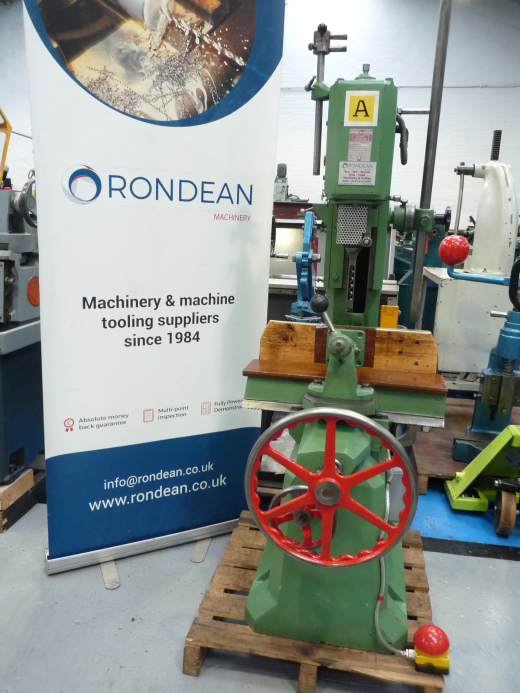

Photo 1

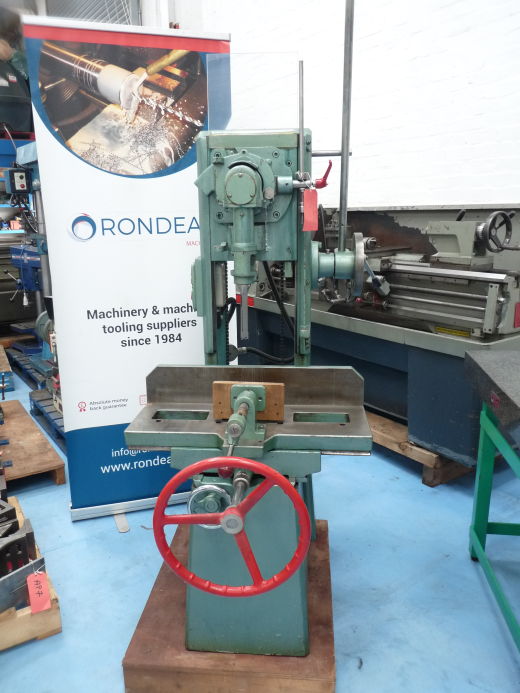

Photo 2

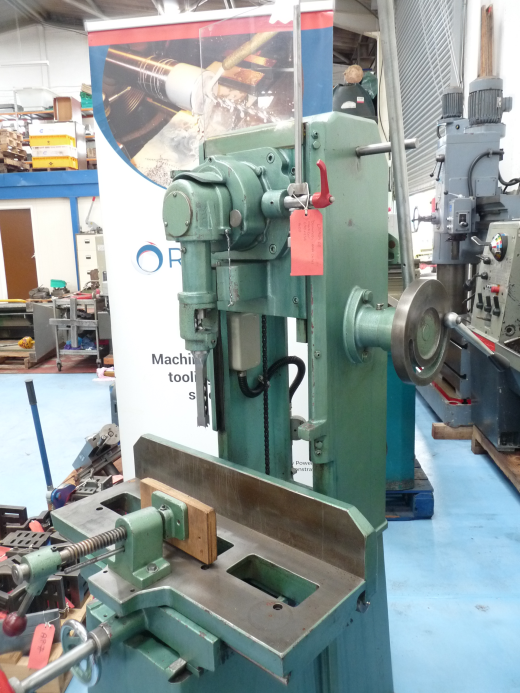

Photo 3

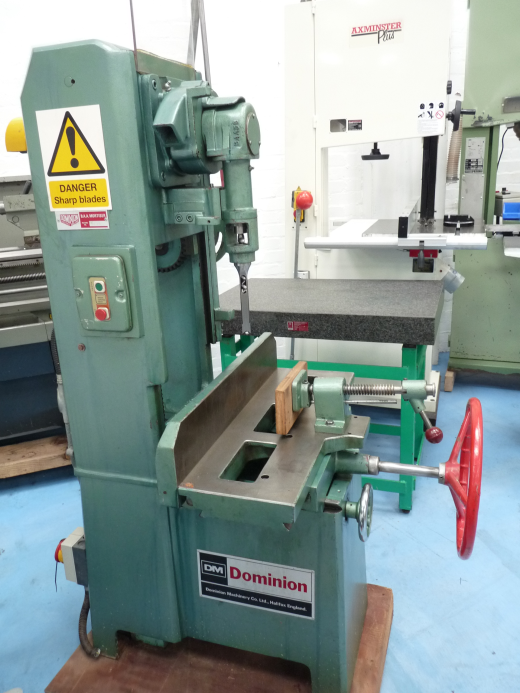

Photo 4

For latest offer please call on 0191 410 5886

Manufacturer
Dominion

Model
BAA Chain and Chisel Morticer

Capacity
12” (300mm) Max Depth of Timber
8” (200mm) Max Width of Timber
1” (25mm) Max Chisel
5 ½” (138mm) Max Depth of Mortice by Chisel
1 ¼” (32mm) Max Width of Mortice Chain
3” (75mm) Max Length of Mortice Chain
6” (150mm) Max Depth of Mortice by Chain
1 ½” (38mm) Max Diameter can bore
27 x 8” (685 x 220mm) Table
22” (559mm) Longitudinal Movement of Table
5” (125mm) Traverse of Table
26” (660mm) Height of Table from Floor

Speed
3000 rpm

Power
3Kw 4 HP 3 Phase Electrics

Size
Length 700
Width 350
Height 1530

Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.

Delivery Options
To suit your needs, call us for a quote.


Category: Misc

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 10 Jan 2025
