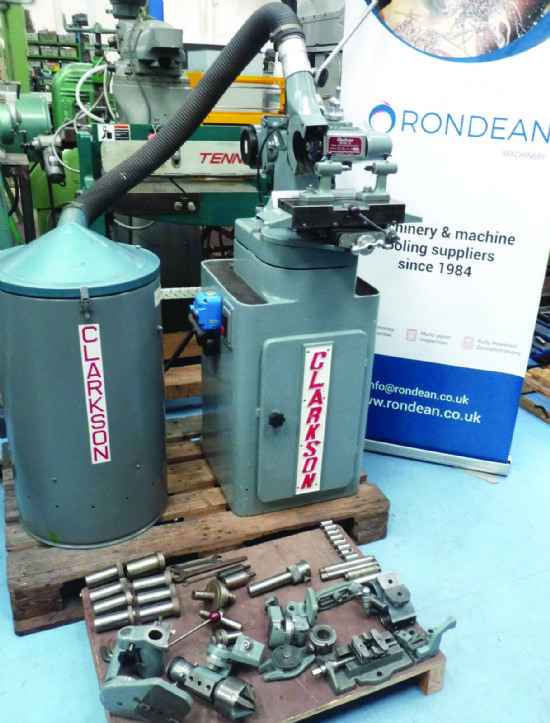

Clarkson Mk II Tool & Cutter Grinder.

Photo 1

Photo 2

Photo 3

Photo 4

For latest offer please call on 0191 410 5886

Manufacturer
Clarkson

Model
MK 2 Tool & Cutter Grinder

height of spindle centre line above the machine table
Maximum: 203mm (8")
Minimum: 57mm (2 1/4")

Spindle speeds
2: 4000 6000 rpm

Maximum movement of work table
203mm (8")

Maximum stroke of work table
165mm (6 1/2")

Maximum movement of cross slide
136mm (5 3/8")

Maximum distance between centres
305mm (12")

Maximum diameter of cutters
152mm (6")

Table Capacity
330mm x 108mm (13" x 4 1/4")

Equipment
Clarkson Extraction Unit
Extraction hood
Universal Head with holders
Clarkson Universal Vice
Drill point & tap lead grinding attachment
Diamond Dresser
Plan Vice
Centres
Extension spindle
Deadlock regrind mandrels
Side & face cutter mandrels
Selection of tooth rests and holders
Various:
Tool holders, collars, parallel tool holders, solid tool holders, mandrels and adaptor bushes

Power
.55 kW / 3/4 hp / 1.5 AMPS
Three Phase Electric's

Dimensions
1000 x 540 x 1300 mm HIGH (inc extraction) 400kg

Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.

Delivery options
To suit your needs, call us for a quote.

Category: Grinding

Seller's location: Co Durham, UK
