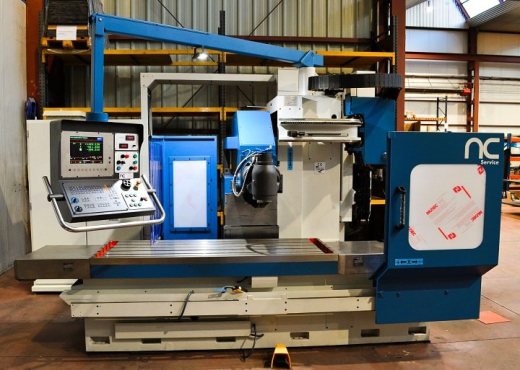

CORREA CF22/20 - 9670409 CNC Milling machine - Bed type

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC426
Year: 1997

• Table dimensions: 2000 x 700 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2000 mm
• Y axis traverse: 800 mm
• Z axis traverse: 800 mm

• Head type: Universal manual (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
• Speed range: 20 - 4000 rpm
• Spindle power: 22 kW

• Feedrate: 5000 mm/min
• Rapid feedrate: 12000 mm/min

• Maximum weight on table: 3500 kg
• Machine weight approx.: 9000 kg
• Machine dimensions approx.: 5265 x 3250 x 2760 mm

• External coolant
• Automatic tool changer: ATC-30
• Electronic handwheel: HR-130
• Guarding
