CORREA A30/30 - 630255 CNC Milling machine - Bed type

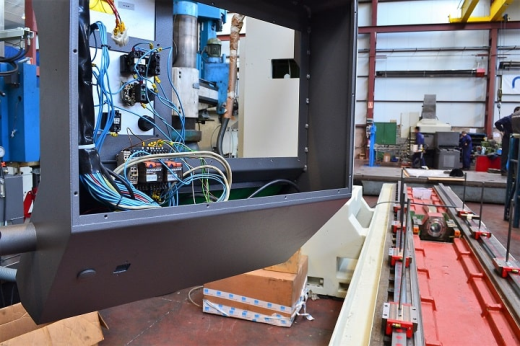

Photo 1

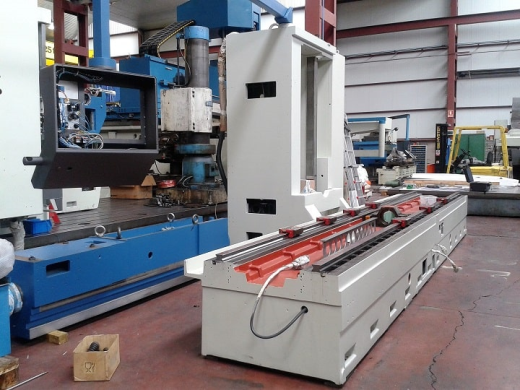

Photo 2

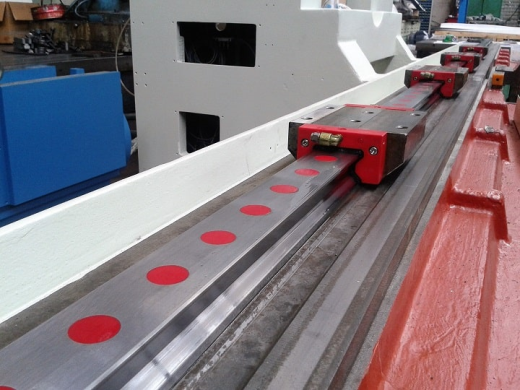

Photo 3

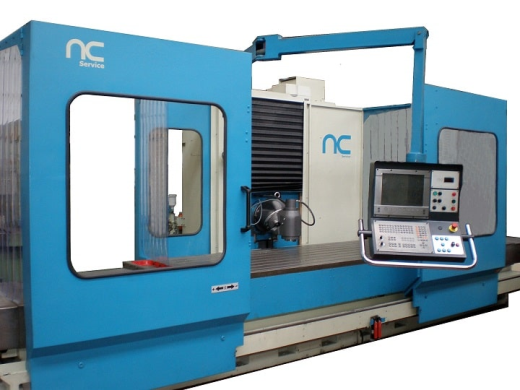

Photo 4

Control: HEIDENHAIN TNC426
Year: 2001

• Table dimensions: 3500 x 1100 mm
• Number of T slots: 8
• T slots dimensions: 22 mm

• X axis traverse: 3000 mm
• Y axis traverse: 1200 mm
• Z axis traverse: 1000 mm

• Head type: Universal manual long face (UL40)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
• Speed range: 20 - 3000 rpm
• Spindle power: 29,6 kW

• Feedrate: 2 - 5000 mm/min
• Rapid feedrate (X / Y,Z): 15000   /   10000 mm/min

• Maximum weight on table: 8000 kg
• Machine weight approx.: 20000 kg
• Machine dimensions approx.: 7900 x 4670 x 2900 mm

• External & high pressure through spindle coolant
• Electronic handwheel: HR-130
• Guarding
