CORREA A30/30 - 630255 CNC Milling machine - Bed type

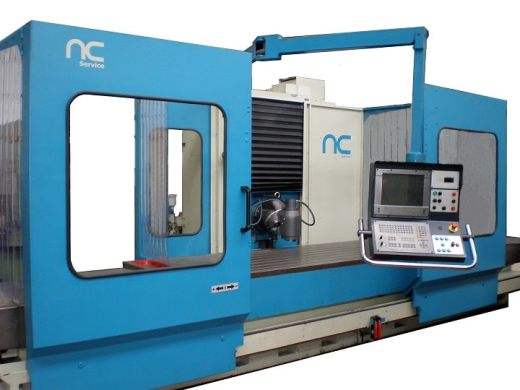

Photo of machine

Photo 1

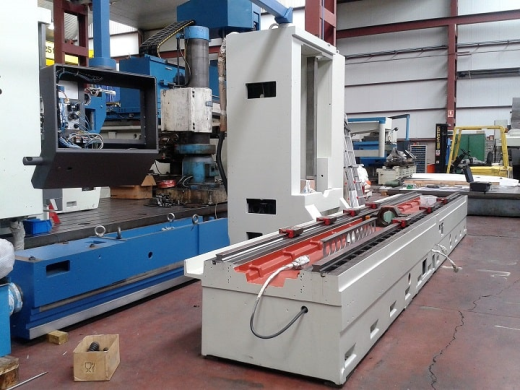

Photo of machine

Photo 2

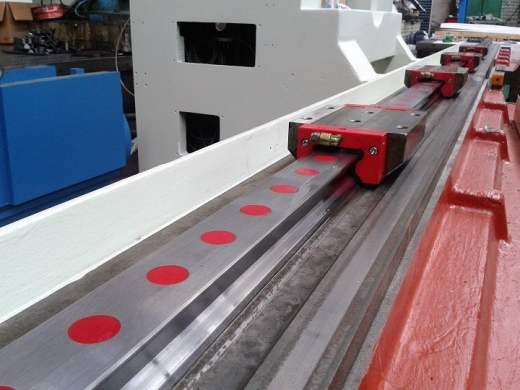

Photo of machine

Photo 3

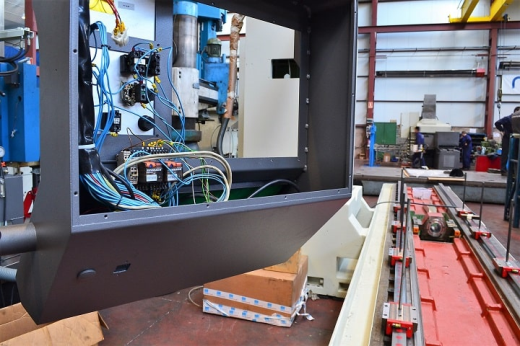

Photo of machine

Photo 4

Photo of machine

Control: HEIDENHAIN TNC426
Year: 2001

  • Table dimensions: 3500 x 1100 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm
  • X axis traverse: 3000 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1000 mm
  • Head type: Universal manual long face (UL40)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
  • Speed range: 20 - 3000 rpm
  • Spindle power: 29,6 kW
  • Feedrate: 2 - 5000 mm/min
  • Rapid feedrate (X / Y,Z): 15000   /   10000 mm/min
  • Maximum weight on table: 8000 kg
  • Machine weight approx.: 20000 kg
  • Machine dimensions approx.: 7900 x 4670 x 2900 mm

  • External & high pressure through spindle coolant
  • Electronic handwheel: HR-130
  • Guarding



Category: Milling - NC/CNC

Seller's location: Spain
