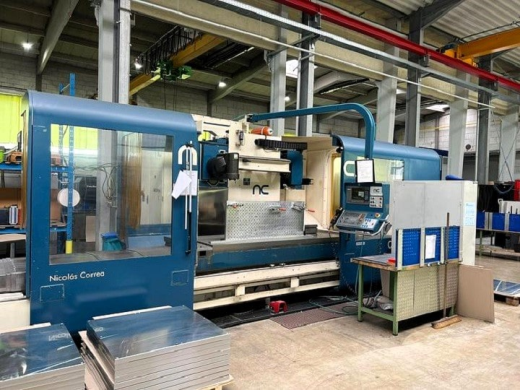

CORREA CF25/25 - 625018 CNC Milling machine - Bed type

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Control: HEIDENHAIN TNC426
Year: 2002

  • Table dimensions: 2800 x 1000 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm
  • X axis traverse: 2500 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm
  • Head type: Auto-indexing differential head UAD (every 0.1º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
  • Speed range: 6000 rpm
  • Spindle power: 22 kW
  • Feedrates: 5 - 5000 mm/min
  • Rapid feedrates (X-Y-Z): 20000 mm/min
  • Maximum weight on table: 6000 kg
  • Machine weight approx.: 20000 kg
  • Machine dimensions approx.: 7750 x 4400 x 3100 mm

  • External coolant & high pressure through spindle
  • Automatic tool changer: ATC-30
  • Longitudinal rear chip conveyor
  • Electronic handwheel: HR-410
  • Guarding



Category: Milling - NC/CNC

Seller's location: Spain
