ANAYAK HVM-6000 - 20010601 CNC Boring machine - Horizontal

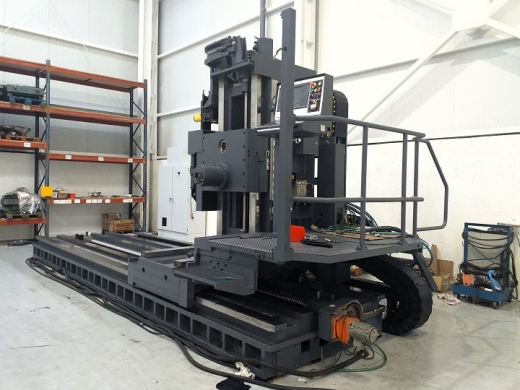

Photo 1

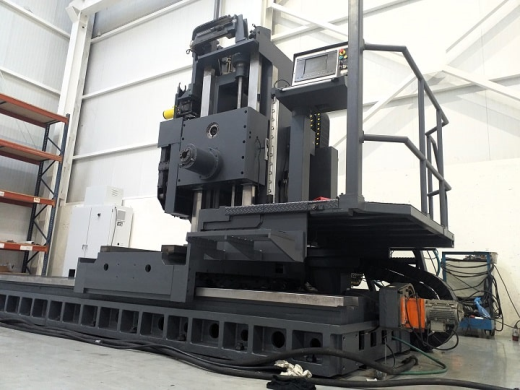

Photo 2

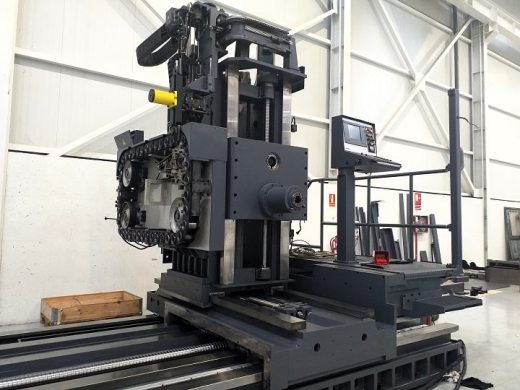

Photo 3

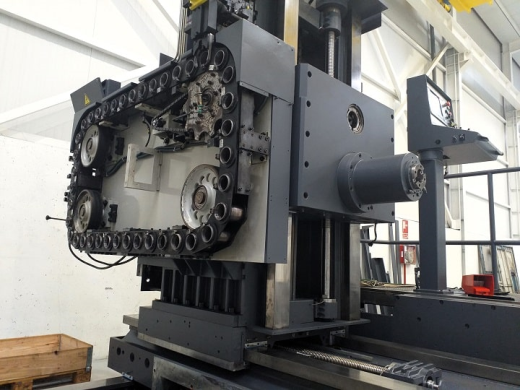

Photo 4

Control: HEIDENHAIN TNC426
Year: 2001

Table dimensions: 6000 x 1000 mm
Number of T slots: 7
T slots dimensions: 22 mm

Longitudinal traverse X: 5040 mm
Vertical traverse Y: 1000 mm
Transversal traverse Z: 1500 mm

Head type: Fixed frontal
Tool clamping system: Hydraulic
Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872-B
Speed range: 60 - 3000 rpm
Spindle power: 22/30 kW

Feedrate: 5000 mm/min
Rapid feedrate (X / Y,Z): 10000 mm/min

Maximum weight on table: No restrictions
Machine weight approx.: 43000 kg
Machine dimensions approx.: 11560 x 6150 x 3538 mm

Guarding (Option: pendular guarding)
Automatic tool changer: AH40
Chip conveyor: 2 longitudinal
Electronic handwheel: HR-410
External coolant

Category: Boring - NC/CNC

Seller's location: Spain
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Jul 2025
