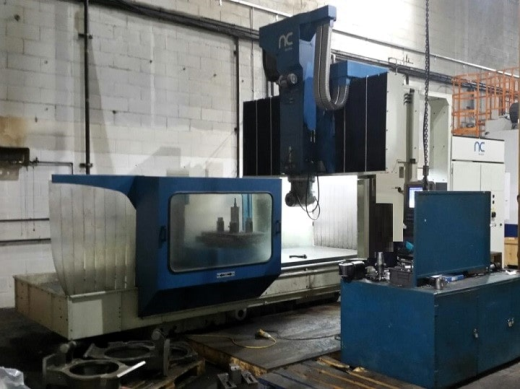

CORREA FP30/30 - 8900004 CNC Milling machine - Bridge type

Photo 1

Photo 2

Photo 3

Photo 4

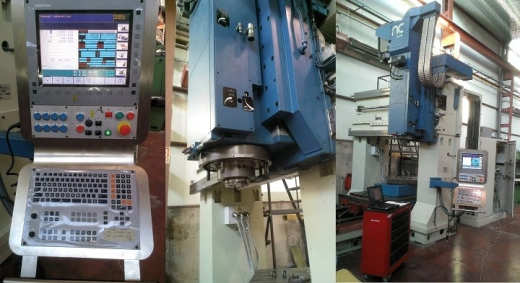

Control: HEIDENHAIN TNC-530
Year: 1993

• Table dimensions: 3000 x 1250 mm
• Number of T slots: 8
• T slots dimensions: 22 mm

• X axis traverse: 2500 mm
• Y axis traverse: 1800 mm
• Distance between columns: 1680 mm
• Z axis traverse: 800 mm

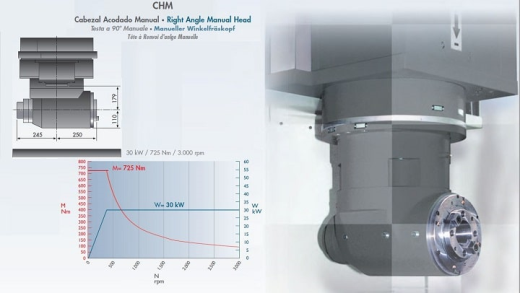

• Right angel manual head (CHM-40) & Direct exit
• Tool clamping system: Hydraulic
• Taper nose: ISO50 (DIN-2080)   /   Pull stud: DIN-69872
• Speed range: 20 - 2500 rpm (5000 rpm direct exit)
• Spindle power: 22 kW

• Feedrate: 2 - 5000 mm/min
• Rapid feedrate (X / Y,Z): 12000 / 9000 mm/min

• Maximum weight on table: 10000 Kg
• Machine weight approximate: 21500 Kg
• Machine dimensions approximate: 7300 x 2690 x 3400 mm

• Guarding
• External coolant
• Electronic handwheel: New HR-510
