ANAYAK HVM-7000 - 20020202 CNC Milling machine - Floor type

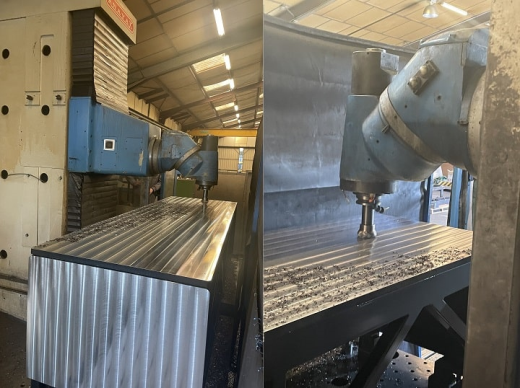

Photo 1

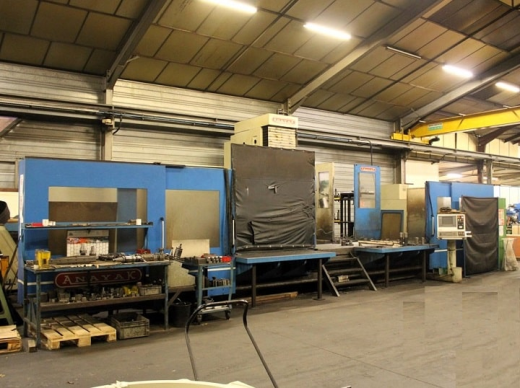

Photo 2

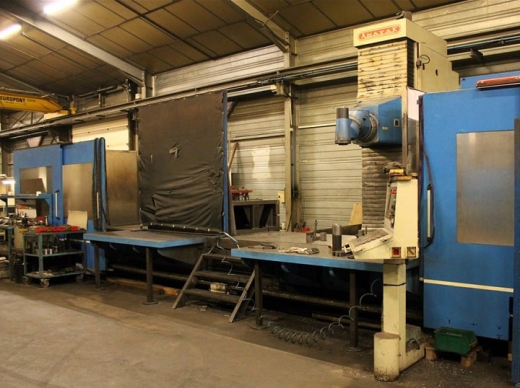

Photo 3

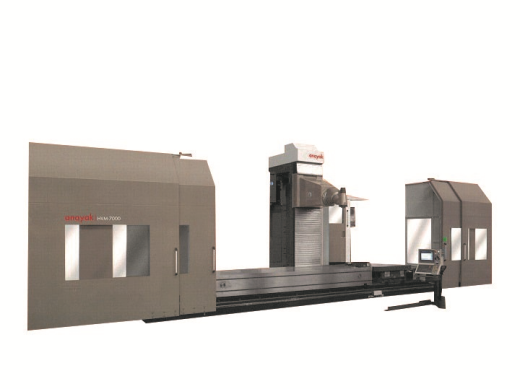

Photo 4

Control: HEIDENHAIN TNC430
Year: 2002

• Table dimensions: 7000 x 1200 mm
• Number of T slots: 8
• T slots dimensions: 22 mm

• Longitudinal traverse X: 6300 mm
• Vertical traverse Y: 1200 mm
• Transversal traverse Z: 2000 mm

• Head type: Auto-indexing BIRA. Automatic B&C bodies (every 2,5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871-B)   /   Pull stud: DIN 69872-B
• Speed range: 60 - 3000 rpm
• Spindle power: 22 kW

• Feedrate: 5000 mm/min
• Rapid feedrate (X / Y,Z): 10000 mm/min

• Maximum weight on table: Undetermined
• Machine weight approx.: 55000 kg
• Machine dimensions approx.: 12800 x 6410 x 4610 mm

• Chip conveyor: 1 rear longitudinal
• Electronic handwheel: New HR-510
• External & internal through spindle coolant
• Guarding
