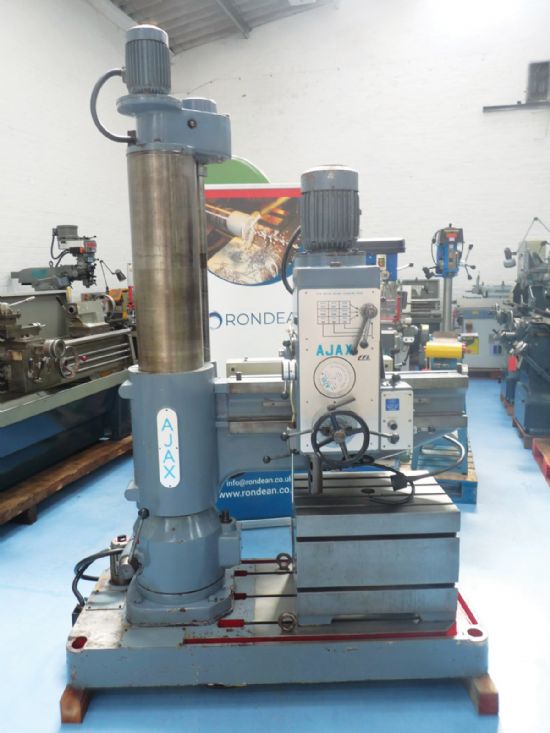

Ajax AJ155 Radial Arm Drill.

Photo 1

Photo 2

Photo 3

Photo 4

For latest offer please call on 0191 410 5886

L20303.01 AJAX AJ155 36” RADIAL ARM DRILL

CAPACITY 3’ (914mm) Maximum Radius of Spindle
14” (355mm) Minimum Radius of Spindle
4 MT Spindle
7 ½” (190.5mm) Travel of Spindle
4’ (1250mm) Maximum Spindle to baseplate
11” (279mm) Minimum Spindle to baseplate
2’ 6” (762mm) Vertical Traverse to Arm
35” x 26” ( 889 x 660mm) Working Area of baseplate
FEATURES Forward / Reverse/ Stop / Inch
Power Feed
Power Rise & Fall to Arm
EQUIPMENT Box Table 605 x 455 x 450mm high
Coolant
Low volt light
SAFETY Brake
Telescopic Trip Switch
SPEEDS 18:50 –1500 rpm
FEEDS 4: .1 / .4 mm/rev
MAIN MOTOR 2.2kw 5 amps
POWER Three Phase Electric's
PRICE (EX VAT) £6,750
APPROX DIMENSIONS: 1590mm X 670mm X 2350mm high 2240KG – net weight 1880kg


Category: Drilling

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 10 Jan 2025
