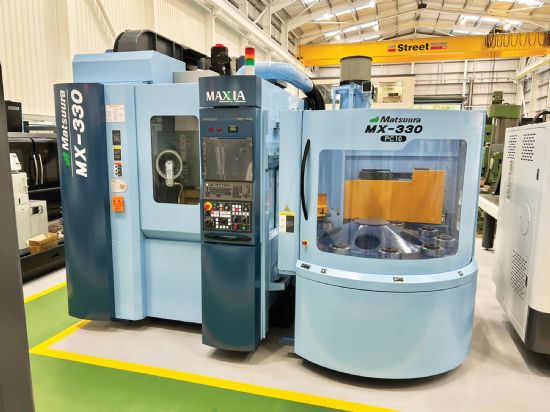

2022 MATSUURA MX-330 10-Pallet 5-Axis Vertical Machining Centre

Photo 1

Photo 2

Photo 3

Photo 4

Matsuura G-Tech 31i Touchscreen control,
working surface 130mm dia,
Capto C6 pallet system,
travels X/Y/Z 435/465/560mm,
travels A/C -125º~-10º/360º,
max workpiece size 330 x 330mm,
max table load 80kg,
spindle taper BT40,
speeds ~15,000rpm,
rapids X/Y/Z 40m/min,
rapid traverse A/C min-1 17/33,
no of tools 90,
max tool dia 60mm,
max tool weight 10kg,
FSE swarf management system (side exit) with chip bin

Category: Machining centres

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 6 Aug 2024
