CORREA PRISMA 25 - 967628 CNC Milling machine - Bed type

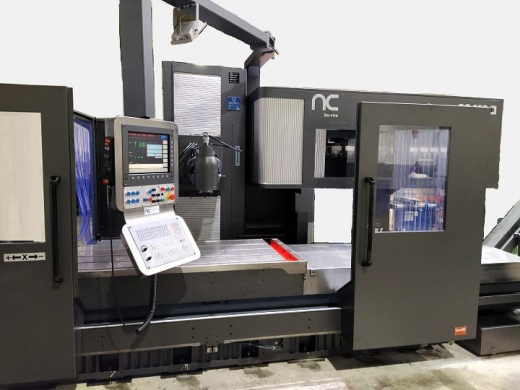

Photo 1

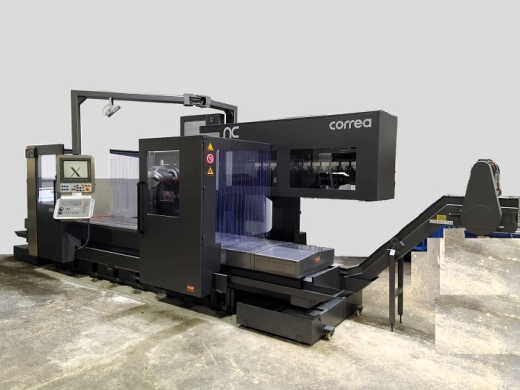

Photo 2

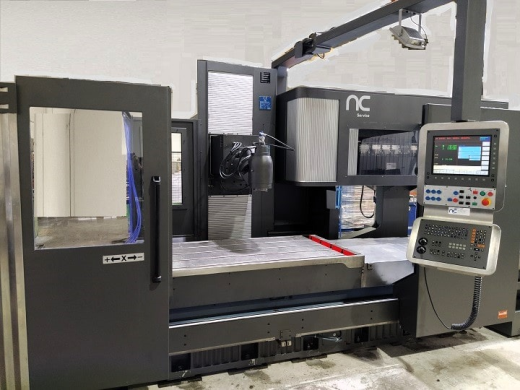

Photo 3

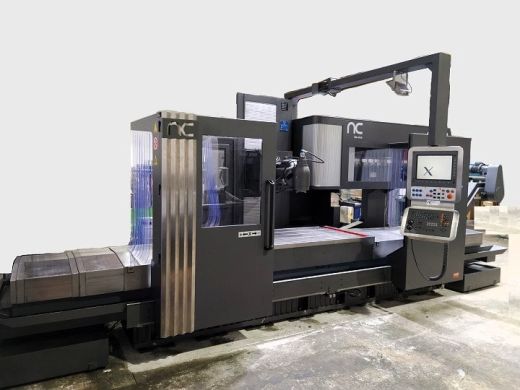

Photo 4

Control: HEIDENHAIN TNC-530
Year: 2006

• Table dimensions: 2800 x 900 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2500 mm
• Y axis traverse: 1000 mm
• Z axis traverse: 1000 mm

• Head type: Universal Auto-indexing UDG (2.5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
• Speed range: 20 - 3000 rpm
• Spindle power: 22 kW

• Rapid feedrate (X / Y-Z): 20000 mm/min   /   12000 mm/min

• Maximum weight on table: 4000 kg
• Machine weight approx.: 14500 kg
• Machine dimensions approx.: 7367 x 5070 x 2803 mm

• Perimetral guarding
• Automatic tool changer: ATC30
• Chip conveyor: rear longitudinal
• External coolant & high pressure coolant through spindle
• Electronic handwheel: HR-420
