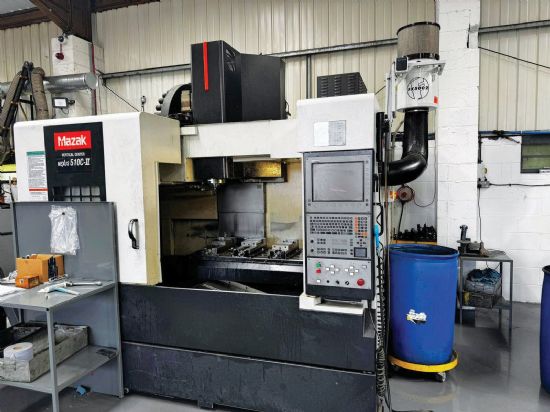

2010 MAZAK VC Nexus 510 C II Vertical Machining Centre

Photo 1

Photo 2

Photo 3

Photo 4

Heidenhain iTNC 530 control,
table size 1,298 x 548mm,
travels X/Y/Z 1,050/508/508mm,
rapids 35m/min,
spindle speeds ~12,000rpm,
spindle power 18kW, ATC 30, DIN 40,
maximum workpiece weight 1,200kg,
min/max height under spindle 150-659mm,
coolant,
interlocked guards,
low-volt light,
swarf conveyor.
Machine dimensions 3,870 x 2,819 x 2,842mm.
Machine weight 6,643kg

Category: Machining centres

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Oct 2024
