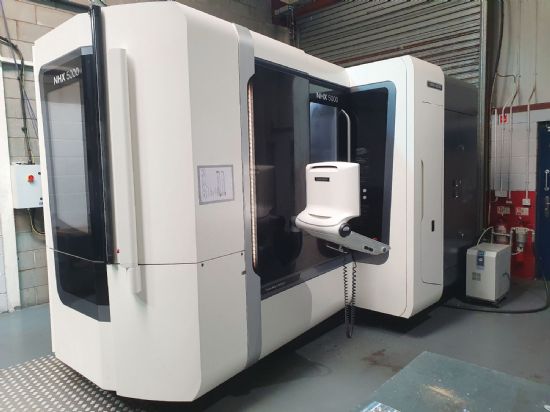

2018 DMG MORI NHX 5000 Horizontal Machining Centre

Photo 1

Photo 2

Photo 3

Photo 4

M730UM with Celos Ergoline Touch control, pallet size
500 x 500mm, travels
X/Y/Z 730/730/880mm,
B-axis 0.001°, ATC 60, BT-MAS 40,
max tool dia 70/170mm,
max tool length 550mm,
max tool weight 12kg,
spindle no. 40 7/24 (two-face contact)/grip MAS,
spindle speeds ~15,000rpm,
spindle power 30.7/26/18.5kW,
spindle torque 207/115/95Nm,
through-spindle coolant,
swarf conveyor (rear discharge),
tool breakage detector,
signal lamp 4 colours,
Renishaw OMP60 spindle probe,
mist extraction unit

Category: Machining centres

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Oct 2024
