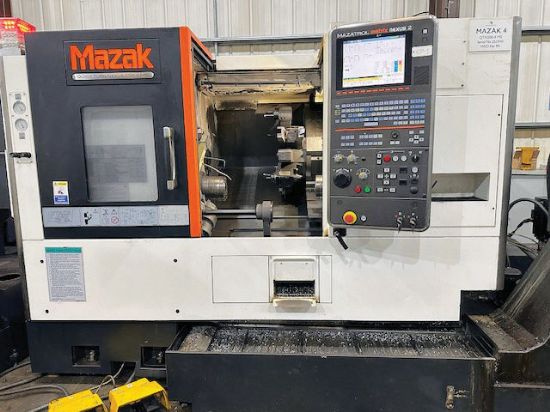

2014 MAZAK QT Nexus 200 II MS CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Mazatrol Matrix Nexus 2 control,
travels X/Z 230/575mm,
chuck dia 210mm,
max swing 675mm,
swing over slide 350mm,
max cutting dia 380mm,
max cutting length 575mm,
spindle speeds ~5,000rpm,
spindle power 22kW,
C-axis 0.001°,
sub-spindle speeds ~6,000rpm,
sub-spindle power 11kW,
sub-spindle C-axis 0.001°,
milling spindle speeds ~4,500rpm,
milling spindle power 5.5kW,
12-station turret,
collet chuck,
high-pressure coolant,
interlocked guards,
low-volt light,
magazine bar feed

Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Oct 2024
