ANAYAK HVM-3300 - M-980505 CNC Milling machine - Floor type

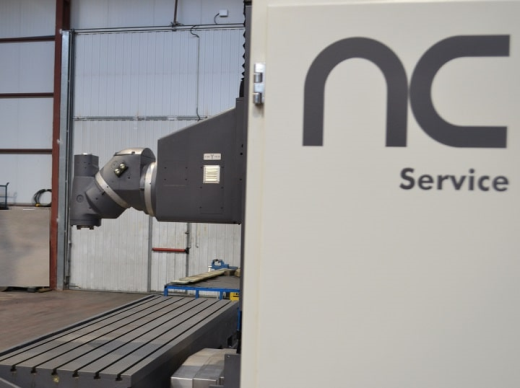

Photo 1

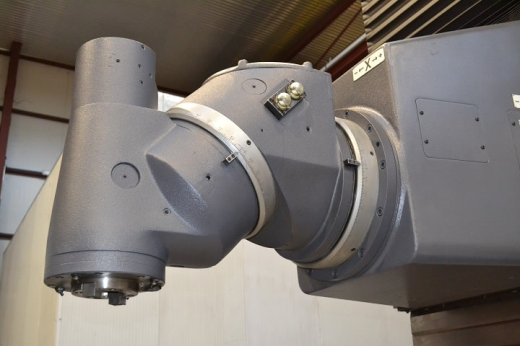

Photo 2

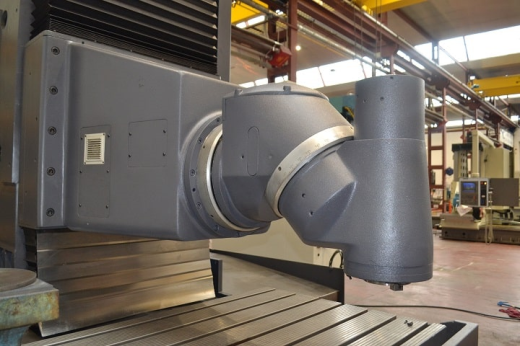

Photo 3

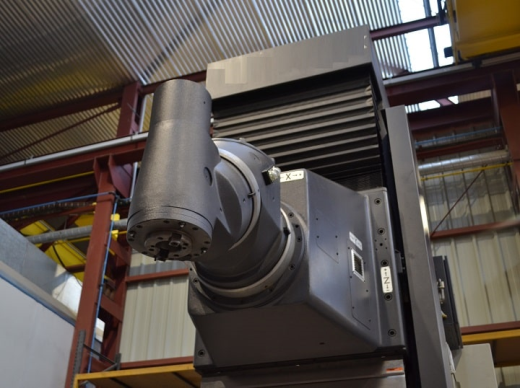

Photo 4

Control: HEIDENHAIN TNC-426
Year: 2000

• Table dimensions: 3600 x 1000 mm
• Number of T slots: 7
• T slots dimensions: 22 mm

• X axis traverse: 2700 mm
• Y axis traverse: 1000 mm
• Z axis traverse: 1000 mm

• Head type: Universal Auto-indexing BIRA – B body (every 1º) and C body (every 2.5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871-B) / Pull stud: DIN 69872-B
• Speed range: 60 - 2000 rpm
• Spindle power: 22 kW

• Feedrate (X / Y-Z): 5000 mm/min
• Rapid feedrate (X / Y-Z): 10000 mm/min

• Maximum weight on table: Undetermined
• Machine weight approx.: 30000 kg
• Machine dimensions approx.: 7900 x 6250 x 3640 mm

• Guarding
• Automatic tool changer: ATC30
• Chip conveyor: rear longitudinal
• External coolant & through spindle (B form)
• Electronic handwheel: New HR-510
