DUGARD EUMACH DBM 2150/5X HEAVY DUTY 5 AXIS VERTICAL MACHINING CENTRE

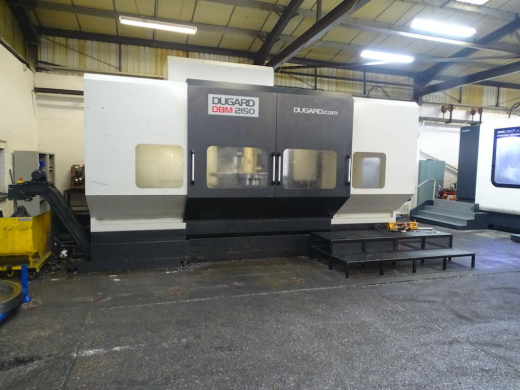

Photo 1

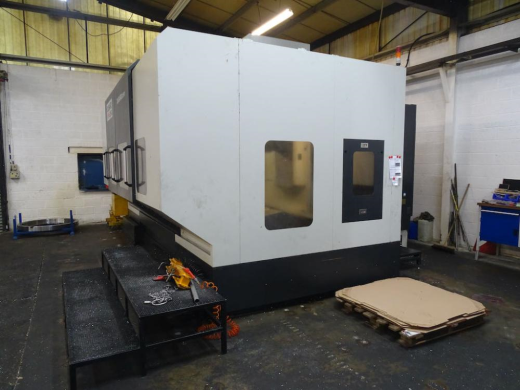

Photo 2

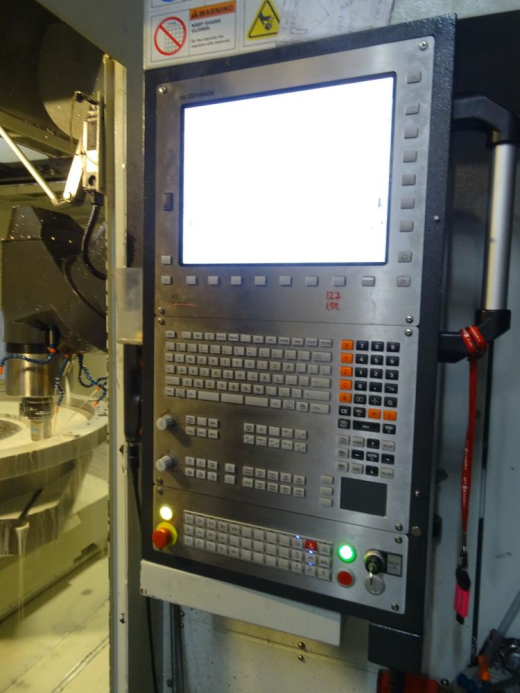

Photo 3

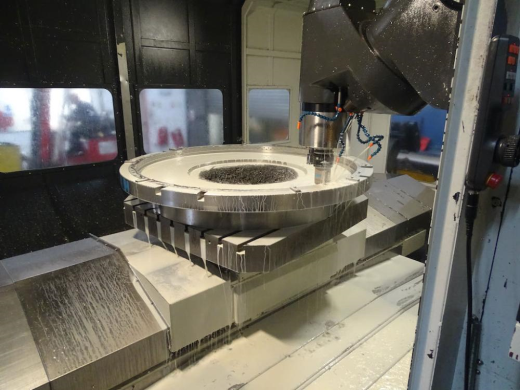

Photo 4

Model DBM 2150/5X

Control system HEIDENHAIN TNC 530i

Year Installed New 2017

X axis traverse 2150 mm
Y axis traverse 1400 mm
Z axis traverse 1100 mm
Table square 1250 x 1250 mm
Max table load 2000 kg
Max swing inside guards 2000 mm
C axis rotation 360°
C axis speed 10 rpm Torque motor
B axis tilt from vert -120° +30° Torque motor
B axis speed 15 rpm max
Spindle nose line to table surface 105-715 mm
Spindle centre line rotary table centre line 0-715 mm
Max feed rate 0-10 m/min
Rapid traverse rates X/Y/Z 36/36/24 m/min

Spindle Speed 10,000rpm
Spindle power (built in) 22kW (70nM)
Spindle taper BT 50
ATC 40 station Bi-directional twin arm
Max tool diameter 150 mm
Max tool length 300 mm
Max tool weight 7 kg
Tool changer time tool to tool 3 secs
Tool change time chip to chip 8 secs
Through spindle coolant 20 bar cartridge filter type

Standard Equipment :-
Heavy duty high quality cast iron frame
Control handwheel HR410
Ethernet connection
Rigid tapping
Helical interpolation
Counterbalanced head
20 bar through spindle coolant
Swarf conveyor
High power coolant system
Automatic Lubrication
Chip flushing system
Fully enclosed guarding

PRICE ON APPLICATION

Category: Agencies

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 19 Nov 2024
