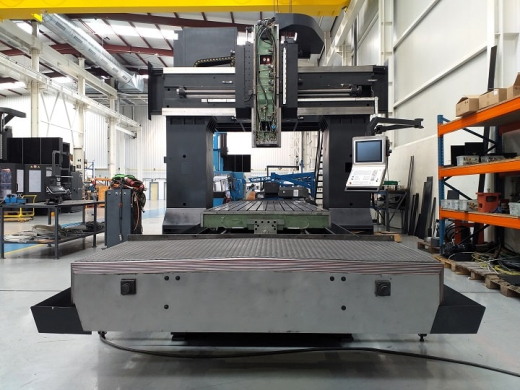

CORREA FP50/50 - 892177 CNC Milling machine - Bridge type

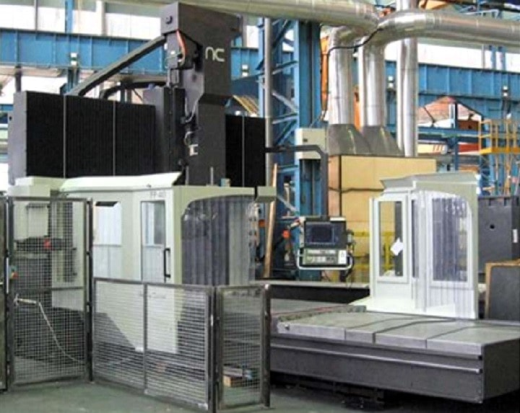

Photo 1

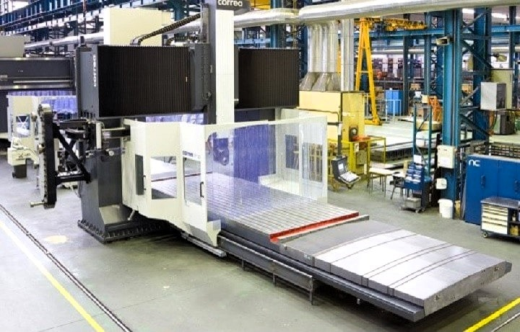

Photo 2

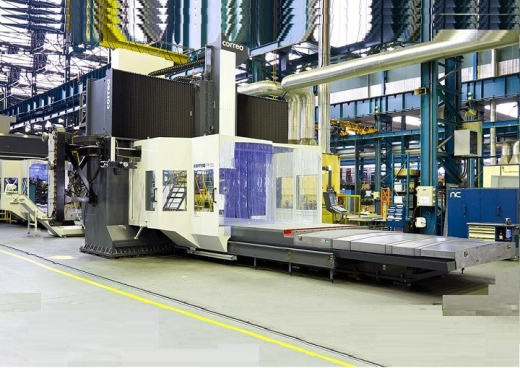

Photo 3

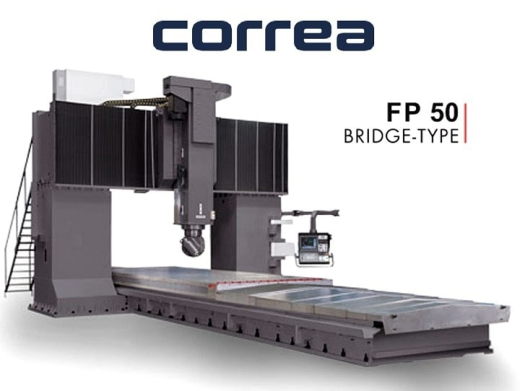

Photo 4

Control: NUEVO/NEW HEIDENHAIN TNC-i640
Year: 2004

• Table dimensions: 5600 x 2000 mm
• Maximum weight on table: 25000 kg
• Number of T slots: 13
• T slots dimensions: 22 mm

• X axis traverse: 5000 mm
• Y axis traverse: 3250 mm
• Z axis traverse: 1000 mm
• Vertical capacity (VC): 450 / 1450 mm
• Distance between columns: 2700 mm

• Auto-indexing differential head (UAD - 0,1º)
• Tool clamping system: Hydraulic
• Taper nose: ISO50 (DIN69871)  /  Pull stud: DIN69872
• Speed range: 6000 rpm
• Spindle power: 30 kW

• Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min

• Machine weight approximate: 56000 Kg
• Machine dimensions approximate: 13200 x 5425 x 5350 mm

• Guarding: 2 sliding doors with a perimetral wire-mesh fence
• Automatic tool changer: Optional
• Chip conveyor: 1 transversal hinge type
• Electronic handwheel: New HR-520
• Coolant: External & internal high pressure through spindle
