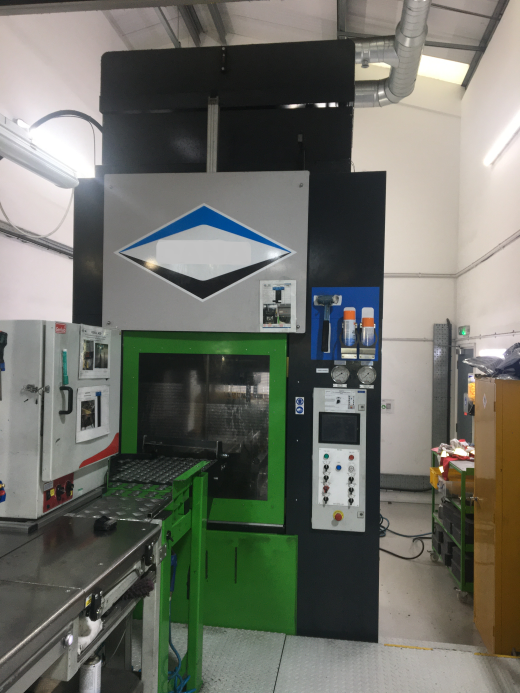

BIPEL 300 Ton Press

Photo 1

Photo 2

Photo 3

Photo 4

Factory rebuilt 2018
Comply with current safety standards
For Compression Moulding
Double acting cylinder
Pressing Force 3000 kN
Pull back force 120 kN
Operating height 930mm
Stroke 610mm
Daylight between tables 1206mm
Daylight between heating platens 841mm
Table size 774mm x 889mm
Heating Platen size 762mm x 762mm
Max. working Temperature 220°C
Power per heating platen 13.5kW
Motor 15kW
Top ejector force 35kN
Top ejector stroke 101mm
Bottom ejector force 60kN
Bottom ejector stroke 254mm
Transfer cylinder Force 55kN
Transfer cylinder Stroke 229mm
Closing speed 200mm/s
Opening speed 150mm/s
Front air operated guard
Rear interlocked hinged guards
Weight Aprrox. 16 ton
Dimension approx. H4128 x 2000mm x 1470mm




Category: Presses - hydraulic

Seller's location: ALDRIDE, UK
