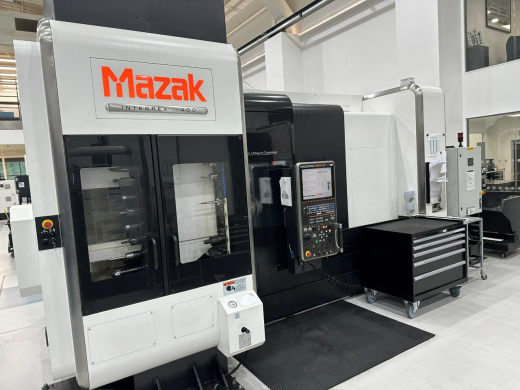

Used Mazak Integrex i400 x 1,500 (4249)

Photo 1

Photo 2

Photo 3

Photo 4

Used Mazak Integrex i400 x 1,500, 2014, s/n 258169, Mazak Matrix II control, Turning dia 658mm, turning length 1,519mm, axis travel X 630, Y 230, Z 1,585mm, W axis 1,574mm, B axis -30/-210 degrees, C axis 0.0001 degree increments, bar diameter 102mm, main spindle speed 3,300rpm, spindle bore 112mm dia, Max bar size 102mm, spindle nose A2-8, spindle motor 30kw, Milling spindle speed 1200rpm, Rapids X/Y/Z 50/50/3840mm/min, Rapid W axis 8 m/min, Tooling CAPTO C6, 110 station ATC, milling spindle motor power 22kw, c/w Powered Tailstock, Swarf Management, Coolant through Milling head, High Pressure coolant 5kgs, 12" B212A0815X 3- jaw chuck (102mm bore), Renishaw RMP60 Probe, Machine dimensions 4,910 x 2,800 x 2,720mm 15,500kgs Spindle hours 31,772

Category: Lathes - CNC

Seller's location: West Sussex, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Jan 2025
