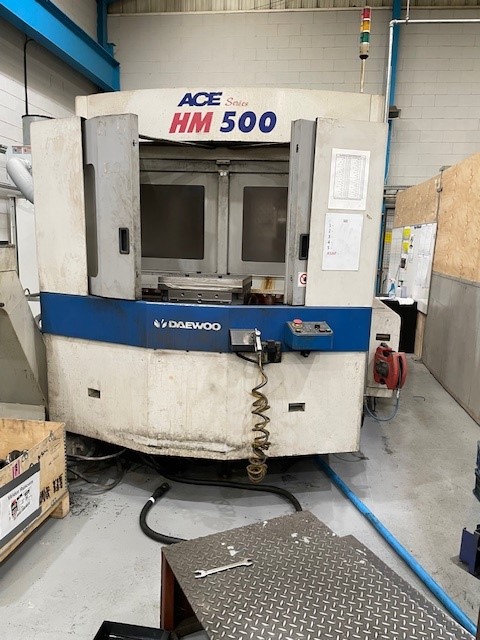

Daewoo ACE 500 Twin Pallet Horizontal Machining Centre

Year 2002

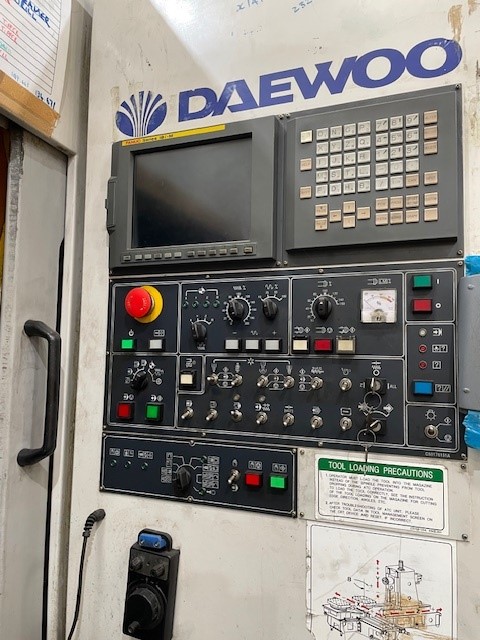

Fanuc 18i CNC Control
Pallet size: 500 x 500 mm.
No. Of pallets: 2 – rotary type. Table loading capacity: 800 Kg.
X-axis travel (Longitudinal): 800 mm.
Y-axis travel (Head vertical): 650 mm.
Z-axis travel (Column cross): 650 mm.
Spindle ISO 50
Spindle speed: 6000 rpm.

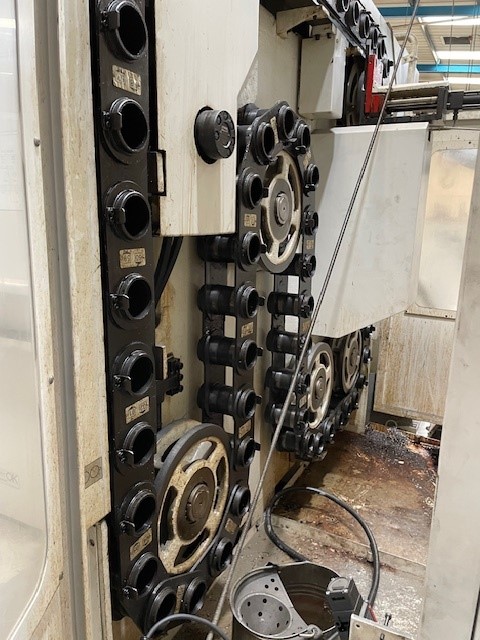

ATC 60position
Machine approximate weight: 13,500 Kg.
Machine complete with Books/Manuals

Category: Machining centres

Seller's location: Nottinghamshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 24 Jan 2025
