10 Tonne Welding Positioner . Height Adjustable

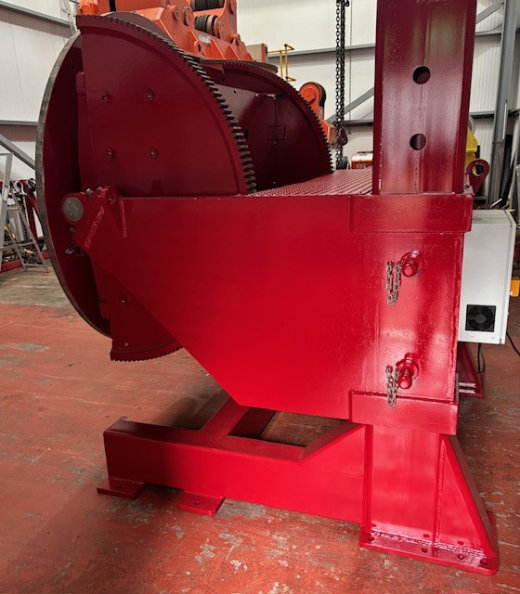

Photo 1

Photo 2

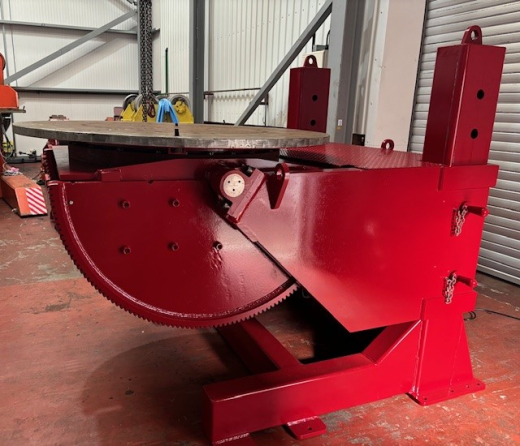

Photo 3

Photo 4

Fully Refurbished Positioner Model RP10TS Series is a 1 0 metric tonne capacity designed to give a maximum positioning
benefit by using tilt and rotation of the table for easy positioning of the workpiece. Two robust columns
permits the o perator to adjust the vertical height manually in increments of 150 mm per sloVpitch to give a
minimum table height of 1350mm up to maximum table height of 1950mm.

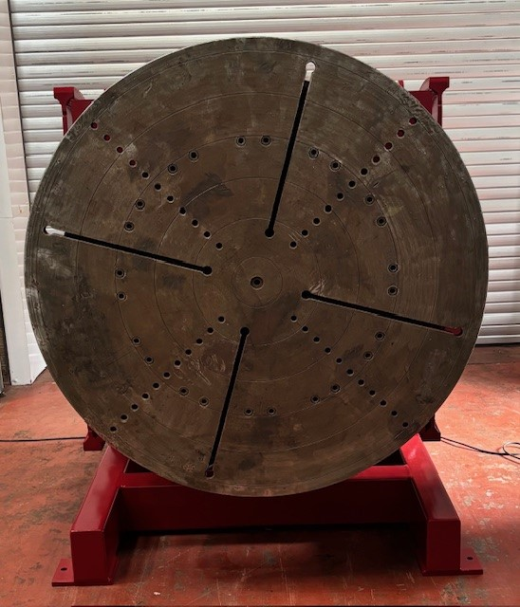

The table is machined with four radial slots for anchor bolts and centric marking on the table and is

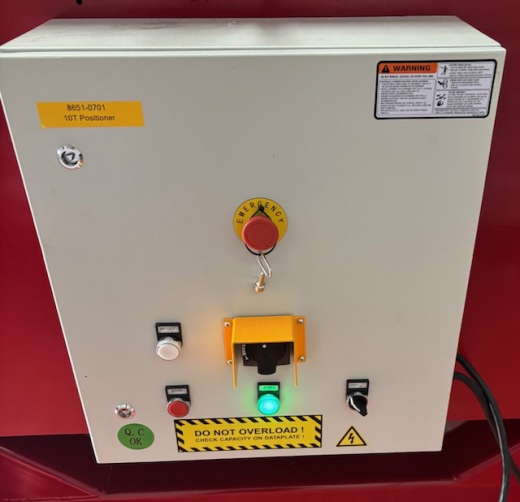

powered driven by AC motor controlled by the latest inverter control box fitted with remote pendant
control to provide stop/start, forward/reverse, tilt and variable speed control. Tilt movement is electrically
power driven by 4.0Kw AC motor with Dynamic Braking through the reduction gearbox. Earth
connections are made through a rotary earth clamp to ensure good earthing to the welding power source.

Category: Welding and Cutting Machinery

Seller's location: West Midlands, UK
