Jones & Shipman 310T Tool & Cutter Grinder

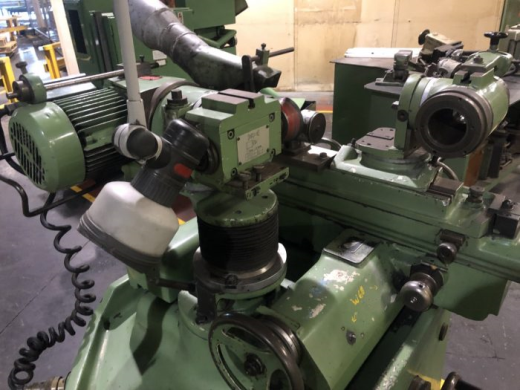

Photo 1

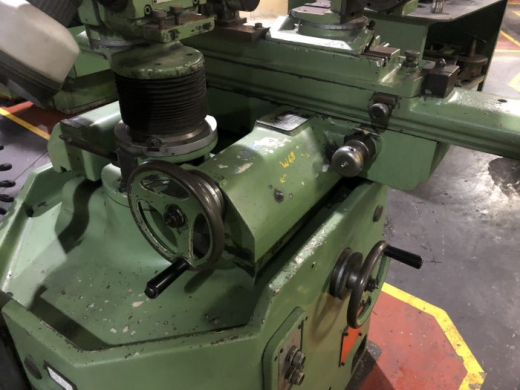

Photo 2

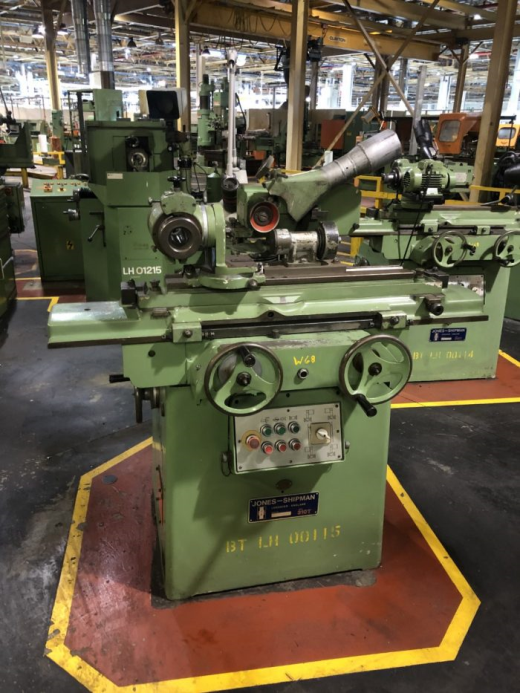

Photo 3

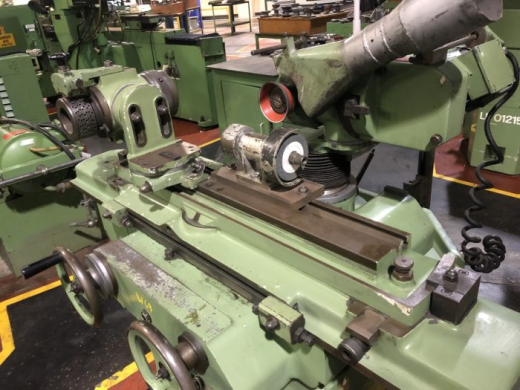

Photo 4

Jones & Shipman 310T Tool & Cutter Grinder

Serial Number BO 94313
Length between cutter head and right hand tailstock 356mm
Length between centres 483mm
Swing Dia. Standard centres 203mm
Swing Dia. On cutter head 305mm
Centre of wheel above table 278mm
Longitudinal Traverse 445mm
Cross Traverse 187mm
Working Surface 749mm x 108mm
Swivel Table
Wheel head:
Circular Adjustment of wheel head column 360deg.
Swivel on vertical plane 360deg.
Swivel of motor on vertical plane 180deg.
Vertical Adjustment 230mm
Wheel Speeds 3940-5350rpm
Wheel Flange for 150mm wheels
Complete With:
Powered Universal Head

Category: Grinding

Seller's location: Nottinghamshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 28 Jan 2025
