CORREA L30/58- 7901201 CNC Milling machine - Floor type

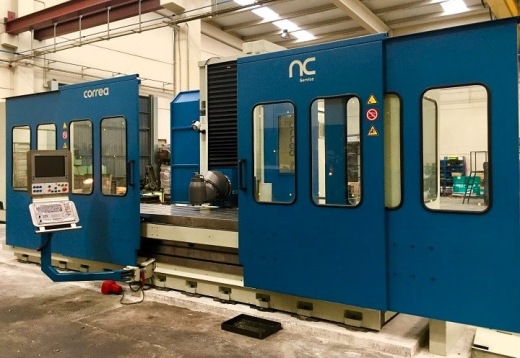

Photo 1

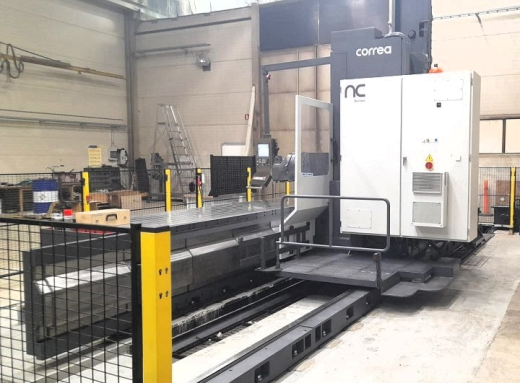

Photo 2

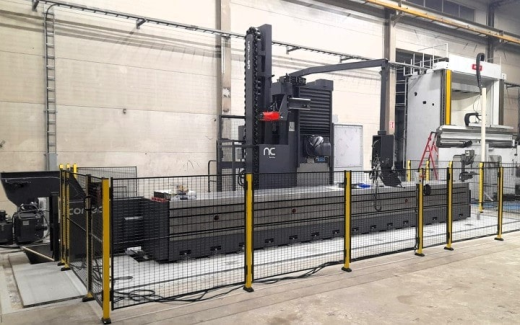

Photo 3

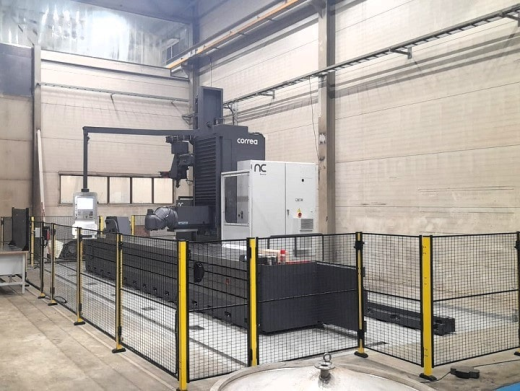

Photo 4

Control: NUEVO/NEW HEIDENHAIN TNC-i640
Year: 1998

• Table dimensions: 7650 x 1000 mm
• Number of T slots: 7
• T slots dimensions: 22 mm

• X axis traverse: 5850 mm
• Y axis traverse: 1200 mm
• Z axis traverse: 1500 mm

• Head type: Auto-indexing head UDG (every 2,5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
• Speed range: 20 - 3000 rpm
• Spindle power: 29,6 kW

• Feedrates: 20 - 5000 mm/min
• Rapid feedrates (X-Y-Z): 10000 mm/min

• Maximum weight on table: 4000 kg/m²
• Machine weight approx.: 31000 kg
• Machine dimensions approx.: 11590 x 5179 x 3485 mm

• Pherimetral guarding and new perimeter safety fence
• Automatic tool changer: ATC-30
• Longitudinal rear chip conveyor
• Electronic handwheel: New HR-510
• External coolant and high pressure through spindle
