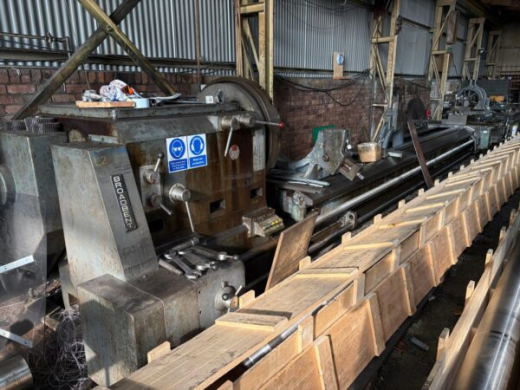

Photo 1

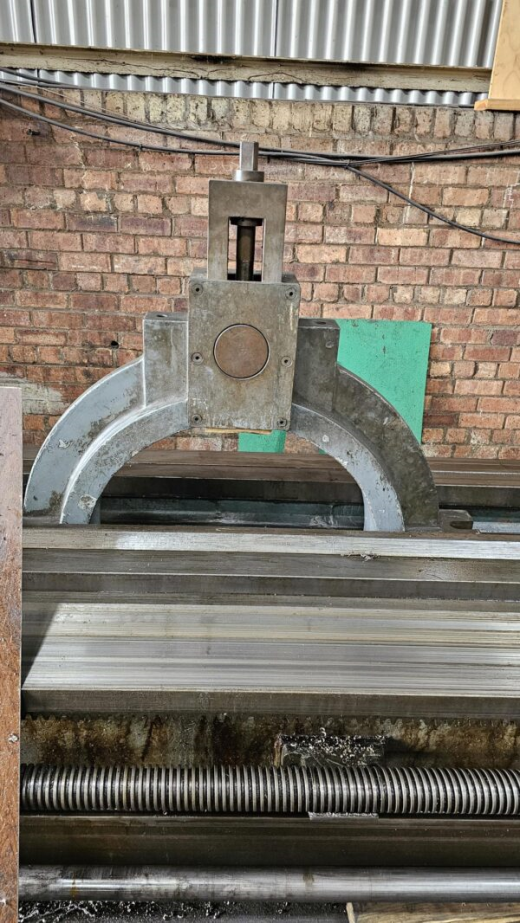

Photo 2

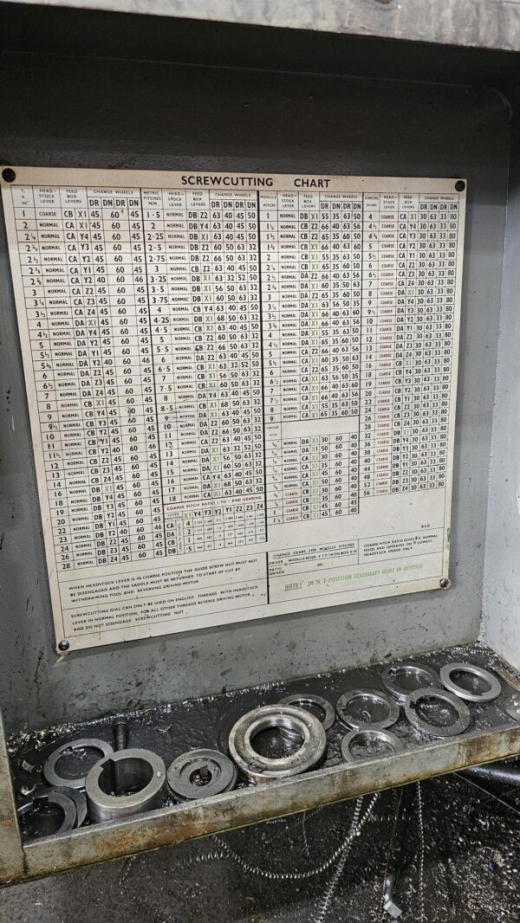

Photo 3

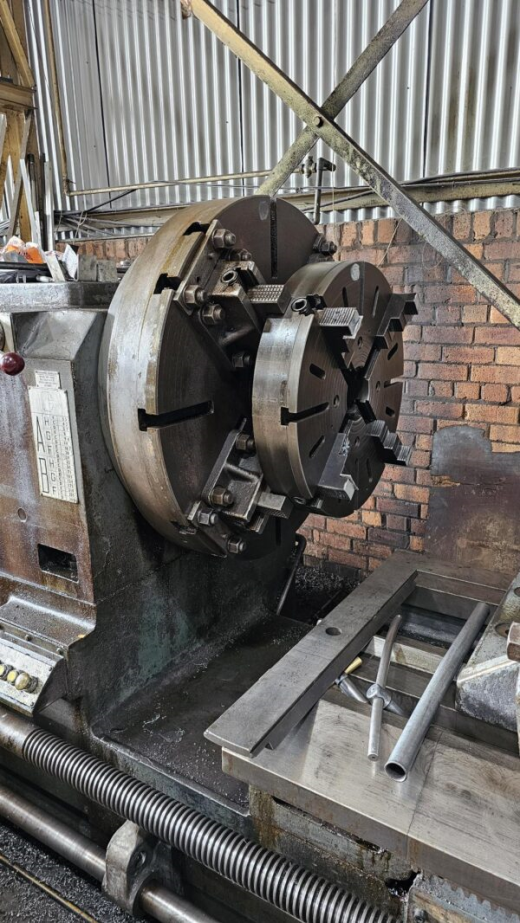

Photo 4

Broadbent Heavy Duty Lathe 1041mm x 10,000mm

Year approx. 1973.
Swing over bed 1041mm (41”)
Swing bin gap1575mm (62”)
Distance between centres 9300mm (30’ 6”)
Spindle bore 115m (4 ½”)
Spindle speeds (18) 3.3 – 360 rpm
Spindle motor 30 HP or 40 HP (To be confirmed)
Tailstock 6 MT
Imperial & Metric screw-cutting with change gears.
36” Faceplate with 4 adjustable jaws,
54” Faceplate,
Taper turning attachment,
Power feed to top slide,
2 x 18” 3 point steadies,
24”/28” Steady.

Category: Lathes - general

Seller's location: Nottinghamshire, UK
