CORREA CF17D - 968665 CNC Milling machine - Bed type

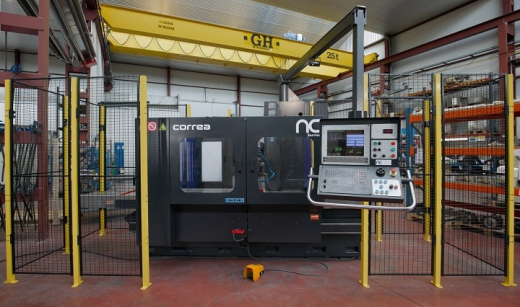

Photo 1

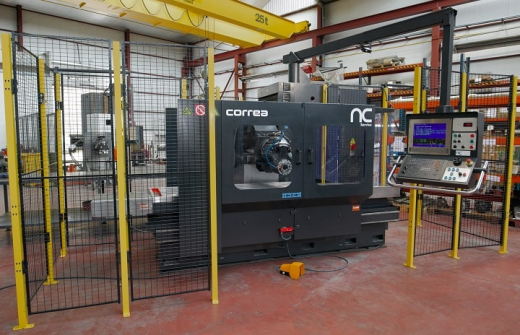

Photo 2

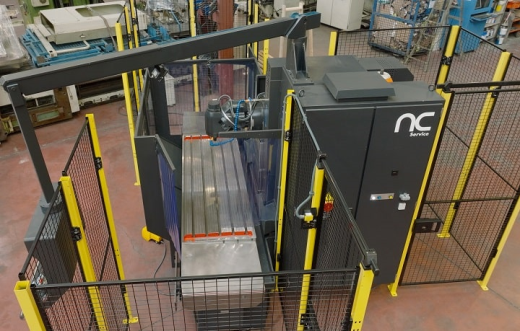

Photo 3

Photo 4

Control: HEIDENHAIN TNC-410-M
Year: 2000

• Table dimensions: 2000 x 700 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2000 mm
• Y axis traverse: 800 mm
• Z axis traverse: 800 mm

• Head type: Universal manual (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN2080) / Pull stud: DIN 69872
• Speed range: 20 - 3000 rpm
• Spindle power: 17 kW

• Feedrate: 5 - 5000 mm/min
• Rapid feedrate: 12000 mm/min

• Maximum weight on table: 4000 kg
• Machine weight approx.: 9500 kg
• Machine dimensions approx.: 5265 x 3250 x 2760 mm

• External coolant
• Electronic handwheel: HR-130
• New foot clamping tool pedal.
• Guarding and new perimetral safety fence installation
