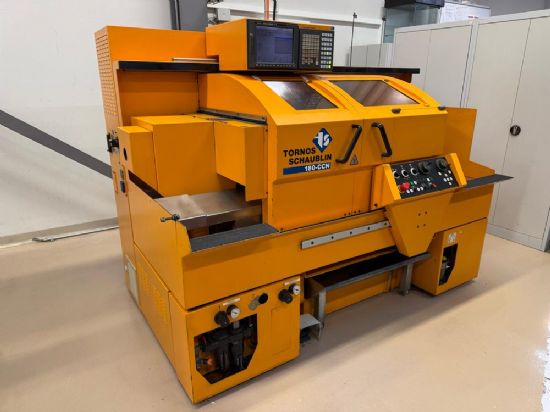

2000 Schaublin 180 CCN CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Power on Hours: 4095
maxium turning diameter: 270 mm;
Distance Between Centers: 600 mm;
Swing Over Bed: 600 mm;
Swing Over Cross-Slide: 150 mm;
Maximum Turning Length: 650 mm;
Bar Passage (Spindle Bore): 55 mm;
Travel (Z-Axis): 720 mm;
Travel (X-Axis): 240 mm;
Rapid Traverse (X-Axis): 8 m/min;
Rapid Traverse (Z-Axis): 10 m/min;
Turret Type: Sauter;
Number of Positions: 8;
Tool Mounting System: VDI 30;
Spindle Nose: A2-5;
Speed Range: 30 to 5.000 rpm;
Spindle Motor Power: 15 kW;
Total Machine Dimensions (L x W x H): 2,301 mm x 1,460 mm x 1,676 mm;
Weight: Approximately 2,440 kg;
Control System: Fanuc Series 18i;
Equipped with: Tailstock, collet chuck with 59 collets (B32), Gamet 3-klaw 170mm chuck with 5 klaw sets, 88 VDI 30 toolholders, documentation

Machine available from site in Switzerland

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2025
