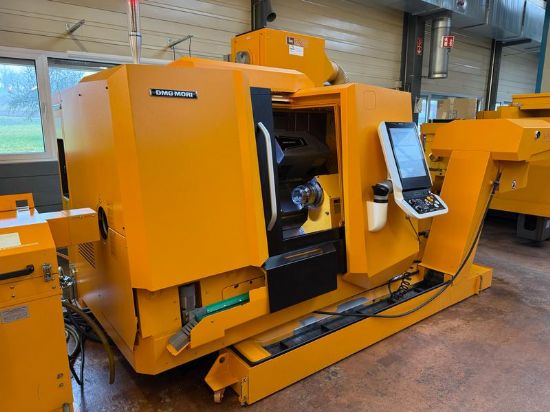

2019 DMG Mori CLX 350 CNC turning centre

Photo 1

Photo 2

Photo 3

Photo 4

Operating hours: 6355
Maximum turning Diameter: 320 mm;
Maximum turning Length: 440 mm;
X-Axis Travel: 185 mm;
Y-Axis Travel: +/- 40 mm;
Z1/Z3-Axis Travel: 465/550mm;
Number of sindels: 2;
Main Spindle type A2-6;
Sub spindle type A2-5;
Spindle Speed Range: Up to 5.000 rpm;
Spindle Power: 16.5 kW;
Main Spindle bore: 73mm;
Sub spindle bore: 45mm;
Number of Tool Stations: 12;
Tool shaft: VDI 30;
Driven tools: yes till 5.000 rpm;
Controle system: SIEMENS Sinumerik 840D sl;
Display: 19” DMG MORI SLIMline multi-touch control panel;
Machine Dimensions (LxWxH): 3700x1900x1900mm;
Weight: 4500kg;
Equipped with: part catcher, marposs tool pre setter, chip conveyor, LTA oil mist separator, Breuning ILS-RBK 100 bar feeder, 1x Heinbuch TOPlus chuck, 1x Heinbuch TOPlus mini, Documentation, 43x Hainbuch clamps, 70x VDI 30 Driven/toolholders

Machine available from site in Switzerland

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2025
