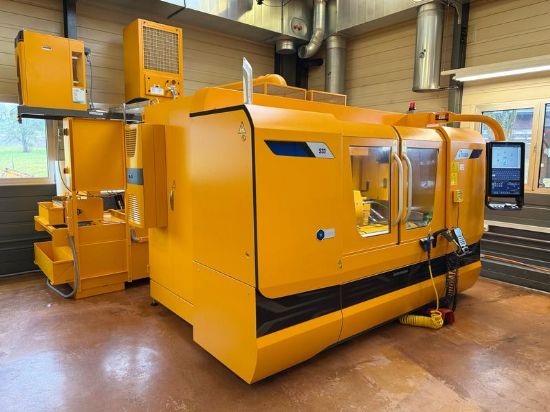

2023 Studer S33 CNC cylindrical grinding machine

Photo 1

Photo 2

Photo 3

Photo 4

Distance Between Centers: 650 mm;
Center Height: 175 mm;
Maximum weight workpiece: 150 kg;
X-Axis Travel: 370 mm;
Z-Axis Travel: 800 mm;
B-Axis Swivel: -30° +225°;
C-Axis Accuracy: +/- 0.5°;
Grinding Spindel power: 12,5 kW;
Grinding weel maximum size: 2x 500x80 mm;
Grinding weel capacity: T1: 1.982 rpm T2: 42.970 rpm;
Workpiece spindel head: MK4;
Workpiece spindel capacity: 1-1500 rpm;
Workpiece tailstock head: MK3;
Control system: Fanuc 31i-B;
Machine dimensions LxWxH: 2100x3250x2150mm
Equipped with: measuring probe, Kraft & Bauer fire extinguishing installation, LTA oil mist separator, DGS paper filter, motorex/Ritter & bader coolers, grinding wheels, documentation

Machine available from site in Switzerland
