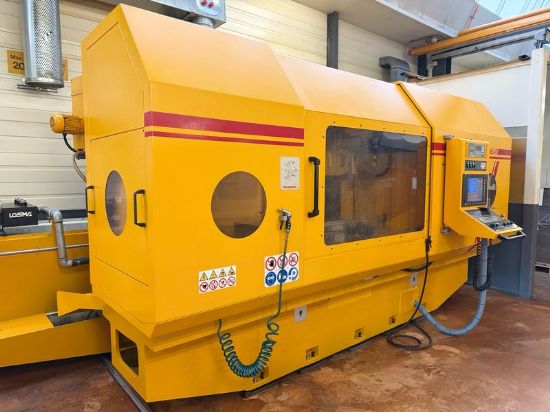

2012 Rosa Ermando SL 11.7 CNC surface grinding machine

Photo 1

Photo 2

Photo 3

Photo 4

Operating hours: 10.784
Table Surface Area: 900 mm x 500 mm;
Maximum Table Load: 1,400 kg;
Grinding Wheel Dimensions (Diameter x thickness x Bore): 450x203.2x76 mm;
Spindle Motor Power: 15 kW;
Spindle Speed: 2200 rpm;
X-axis Travel: 1350 mm;
X-axis Feed Rate 0-60 m/min;
Z-axis above the table: 800 mm;
Z-axis Feed Rate: 0 - 8 m/min;
Y-axis Travel: 650 mm;
Y-axis Feed Rate: 0 - 8 m/min;
Machine Weight: Approximately 9,600 kg;
Machine dimensions LxWxH : 4,650x3105x2595 mm;
Control system: Siemens Sinumerik 840Di;
Equipped with: Texa cooler, Losma paper filter, Martin Wetter oil mist filter, Marposs E78 Balancer, grinding weels, documentation

Machine available from site in Switzerland

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2025
