2017 DMG Mori NTX 1000 CNC mill-turn center

Photo 1

Photo 2

Photo 3

Photo 4

Operating hours: 16724
Maximum turning diameter: 450mm;
Maximum turning length: 800mm;
X1/X2-axis travel: 455/160mm;
Y-axis travel: +/-105mm;
Z1/Z2-axis travel: 800/730mm;
B-axis capacity: +/-120°;
Maximum spindle 1/2 speed: 5.000/6.000 rpm;
Spindle 1/2 head: JIS A2-6/JIS A2-5;
Spindle 1/2 bore: 73/61mm
Milling spindle speed: 12.000 rpm;
Toolholder type: C5
Toolholder magazine capacity: 2x 38
Turret capacity: 10
Driven tool speed on turret: 10.000 rpm
Machine weight: 12.000 kg

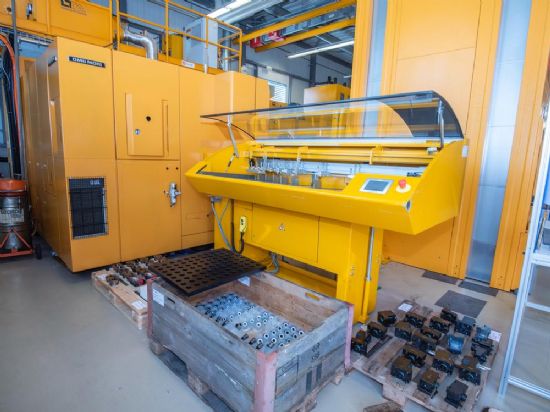

Equipped with: Breuning SV 5 bar feeder, Renishaw tool pre setter, LTA oil mist separator, Kraft & Bauer fire extinguish insulation, Knoll coolant filter, Hyfra cooler, parts catcher, 2x hainbuch chuck, 24x heinbuch camps, 2x kitagawa 3-jaw chuck, various jaw sets, 175 C5 toolholders, 20x WTO toolholder, spare parts, documentation

Machine available from site in Switzerland

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2025
