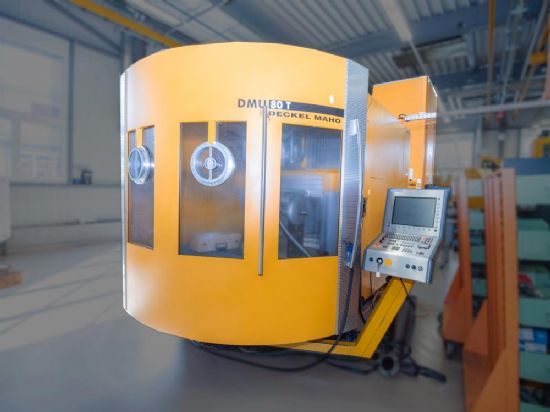

2003 Deckel Maho DMU 80T CNC machining centre

Photo 1

Photo 2

Photo 3

Photo 4

Axis Travels:
X-Axis Travel: 880 mm
Y-Axis Travel: 630 mm
Z-Axis Travel: 630 mm
Table Dimensions: 1250 mm x 700 mm
Spindle Speed Range: Up to 10,000 rpm
Spindle Motor Power: 25 kW
Tool Taper: SK40 Big plus

Tool Magazine: 1
Number of Tool Positions: 16
Maximum Tool Diameter: 130mm
Maximum Tool Length: 315 mm
Maximum Tool Weight: 8 kg

Tool Magazine: 2
Number of tool positions: 16
Maximum tool diameter: 80mm
Maximum tool length: 315 mm
Maximum tool weight: 8kg

Control System:
Controller: Heidenhain TNC 530i

Machine Dimensions and Weight:
Approximate Dimensions (L x W x H): 3950 mm x 2900 mm x 2500 mm
Weight: Approximately 8800 kg

Machine available from site in Switzerland

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2025
