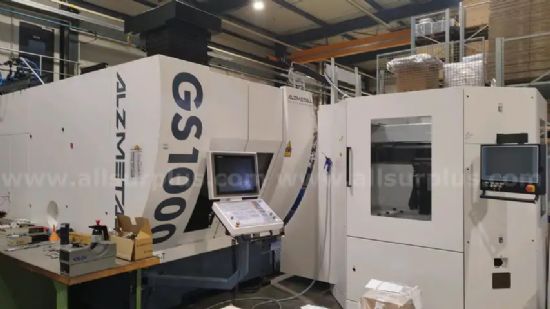

Alzmetall GS1000/5-T 5 Axis CNC Machining Centre (2022)

Photo 1

Photo 2

Photo 3

Photo 4

5 axis
X-Axis 800 mm
Y-Axis 800 mm
Z-Axis 600 mm
Interference circle diameter 1070 mm
Distance Spindle Up to 823,5 mm
Machine-Table Load 1000kg
Maximum rapid travel X/Y/Z at TCP max 75 m/min
Cutting-Tool Interface HSK-A63
Motor-Spindle-Power at CDF 25% max 50kW
Motor-Spindle Torque at CDF 25% max 187 Nm
Wiring diagram :H65262-95-2527
Machine weight : 16500kg
Filtration system
Model : MS-syst-00013
Serial number : 1088377

Lahntechnik Chiller unit
Model : BL 058-345
Serial number : E-50681
Year 2022

Swarf conveyor and trolley

Indunorm pallet changer
Year 2023
Serial number ALZ300-003
Weight 2250kg

Located in Eschenlohe & Putzbrunn, Germany

Category: Public Auction

Seller's location: London, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Apr 2025
