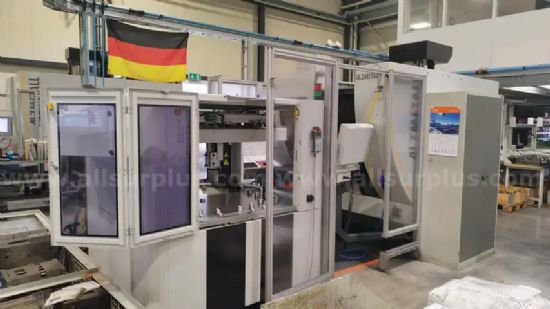

Alzmetall GS600/5-T 5 Axis CNC Machining Centre (2018)

Photo 1

Photo 2

Photo 3

Photo 4

X-Axis 460 mm
Y-Axis 600 mm
Z-Axis 400 mm
Interference circle diameter 640 mm
Distance Spindle Up to 550 mm
Machine-Table Load 500 kg
Maximum rapid travel X/Y/Z at TCP max. 75 m/min
Cutting-Tool Interface HSK-A63
Motor-Spindle-Power at CDF 25% max. 26 kW
Motor-Spindle Torque at CDF 25% max. 116 Nm
Wiring diagram : H5774-95-2845
Machine weight 7000 kgs
Resy filtration system
Model: KBF - 452/500
Serial number 18-P02571
Swarf conveyor and Tolley

Erowa pallet changer
Model :RobotEasy
Serial number : ERE 4045
Year 2018
Table size 31.5 inches (800 mm)
Tool changer capacity 32 tools

Located in Eschenlohe & Putzbrunn, Germany

Category: Public Auction

Seller's location: London, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Apr 2025
