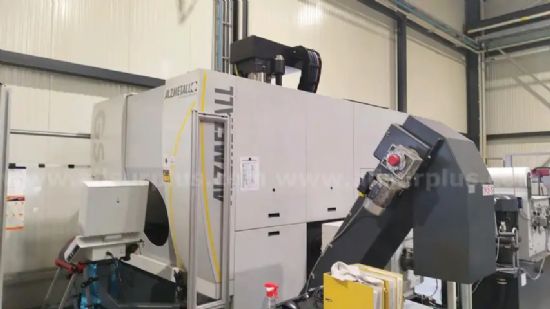

Alzmetall GS800/5 5 Axis CNC Machining Centre (2017)

Photo 1

Photo 2

Photo 3

Photo 4

5 axis
X-Axis 660 mm
Y-Axis 800 mm
Z-Axis 550 mm
Interference circle diameter 800 mm
Distance Spindle up to 650 mm
Machine-Table Load 500 kgs
Maximum rapid travel X/Y/Z at TCP max. 75 m/min
Cutting-Tool Interface HSK-A63
Motor-Spindle-Power at CDF 25% max. 16 kW
Variable Speed Range max. 10.000 mm-1
Motor-Spindle Torque at CDF 25% max. 102 Nm
Heidenham touch screen control
Wiring diagram : 2865-95-653991
Machine weight 13,000 kgs
Resy filtration system
Swarf conveyor

Erowa pallet changer model RobotEasy
Serial number ERE.3048
Year 2017
Weight 1300kg

Located in Eschenlohe & Putzbrunn, Germany

Category: Public Auction

Seller's location: London, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Apr 2025
