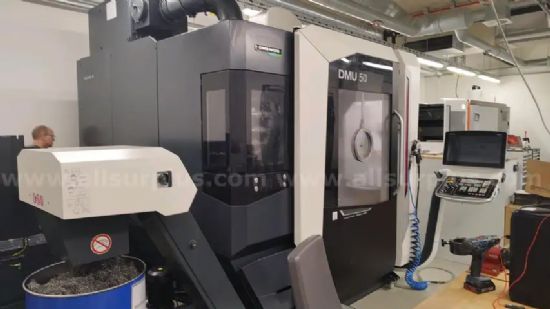

DMG DMU50 5 Axis CNC Machining Centre (2021)

Photo 1

Photo 2

Photo 3

Photo 4

5 axis
Working area Travels X / Y / Z mm 650 / 520 / 475
Main drive
Speed range rpm 20 15,000
Drive power (40 / 100 % DC) kW 21 / 16
Torque (40 / 100 % DC) Nm 111 / 85

Feed
Rapid traverse X / Y / Z m/min 42
Maximum thrust force X / Y / Z kN 4.8

Swivelling rotary table
Clamping area mm 630 500
B- / C-axis speed rpm 30*
Maximum load kg 300
Swivel range Degrees 35 / +110

Tool magazine with double gripper
Storage positions Number 30 / 60** / 120**
Maximum tool length mm 300
Maximum tool diameter mm 80 / 130
Tool weight max. kg 8

60 ATC. HSK63.

Machine weight / connected values Weight kg 7,480

Operating Hours: 18236,5 hours

Located in Eschenlohe & Putzbrunn, Germany

Category: Public Auction

Seller's location: London, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Apr 2025
