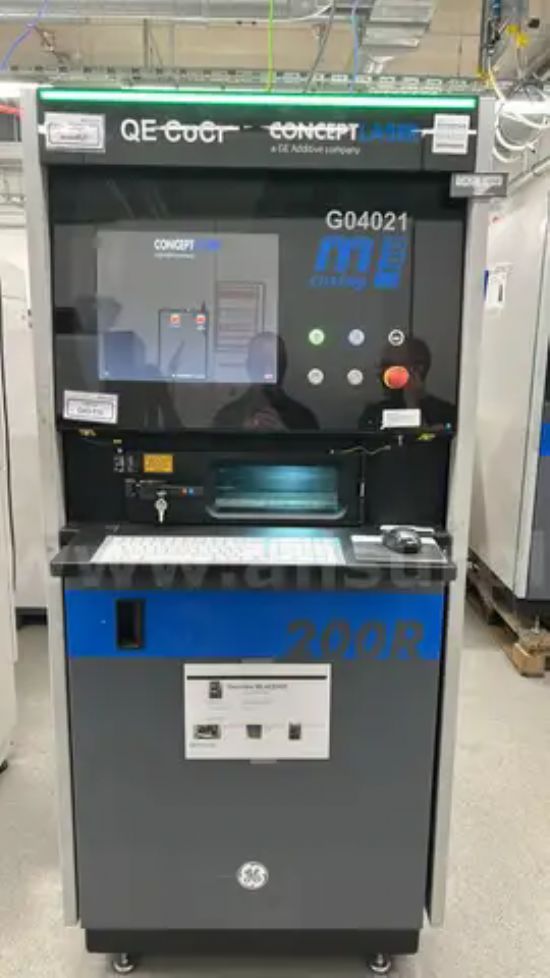

Concept Laser Mlab Cusing 200R DMLS Additive Manufacturing Machine (2018)

Photo 1

Photo 2

Photo 3

Photo 4

Last measured laser power : 26/02/2024
Last material : Ti-6Al-4V (Titanium) , Stainless Steel 316L and CoCr (Cobalt-Chromium)

Laser thickness : 15 30 ?m
Production speed : 1 9 cm3/h (depending on material)
Laser system : Fibre laser 200 W (cw)
Max scan speed : 7 m/s
Focus diameter : approx 75 ?m
Connected loads : power consumption max. 1.5 kW Power supply 1/N/PE AC 230 V, 16 A
Inert gas supply : 1 gas connection provided / Nitrogen or Argon
Inert gas consumption : approx. 0.6 0.8 l/min
Machine dimensions : 820 x 1839 x 1410 mm (W x H x D)
Handling station dimensions : 729 x 1392 x 628 mm (W x H x D)
Machine weight : 700 kg approx.
Handling station weight : 100 kg
Operating conditions : 15 30C
Materials available : Stainless Steel 316L , Stainless Steel 17-4PH, Maraging Steel M300, Aluminum AlSi10Mg, Nickel 718, Titanium Ti6Al4V ELI Grade 23, Titanium CPTi Grade 2, Bronze CuSn, remanium star CL (CoCrW), rematitan CL (Ti6Al4V ELI)

Please note item located in Putzbrunn

Located in Eschenlohe & Putzbrunn, Germany
