CORREA L30/74 - 7900407 CNC Milling machine - Floor type

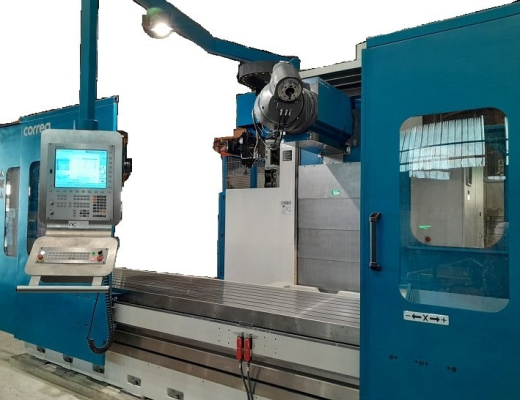

Photo 1

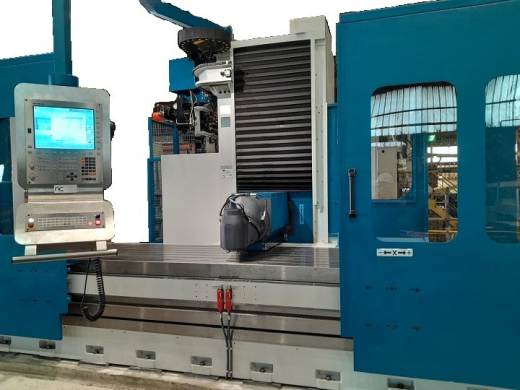

Photo 2

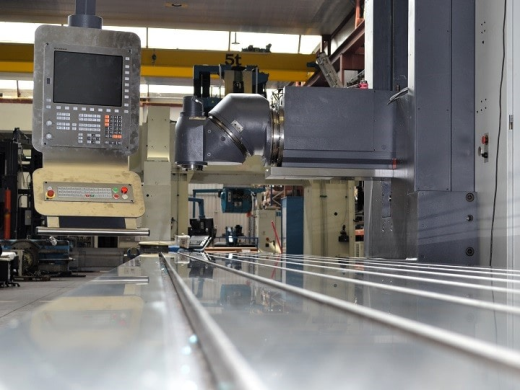

Photo 3

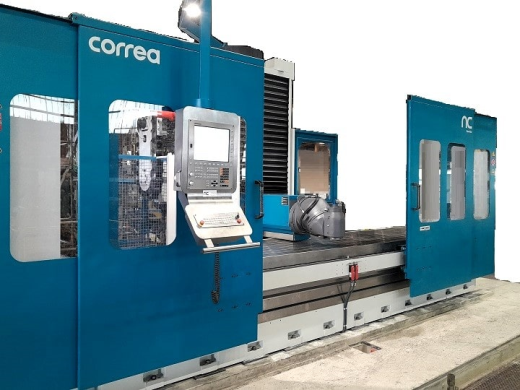

Photo 4

Control: NUEVO/NEW HEIDENHAIN TNC-320
Year: 1995

• Table dimensions: 9180 x 1000 mm
• Number of T slots: 7
• T slots dimensions: 22 mm

• X axis traverse: 7400 mm
• Y axis traverse: 1200 mm
• Z axis traverse: 1500 mm

• Head type: Auto-indexing head UDG40 (every 2,5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
• Speed range: 20 - 3000 rpm
• Spindle power: 22 kW

• Rapid feedrates (X-Y-Z): 12000 mm/min

• Maximum weight on table: 30000 kg
• Machine weight approx.: 34000 kg
• Machine dimensions approx.: 13950 x 5600 x 3650 mm

• Guarding and new perimetral fence
• Automatic tool changer: ATC-50
• New Longitudinal rear chip conveyor
• Electronic handwheel: New HR-510
• External coolant and high pressure through spindle
