CORREA FP40/60 - 8950202 CNC Milling machine - Bridge type

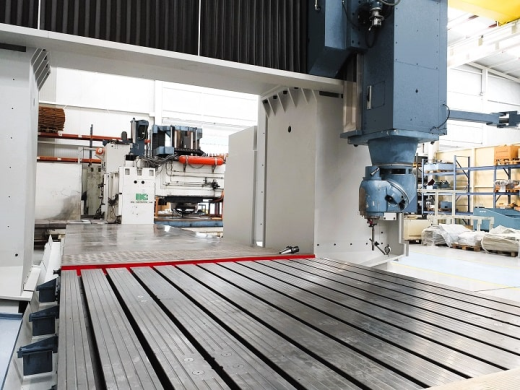

Photo 1

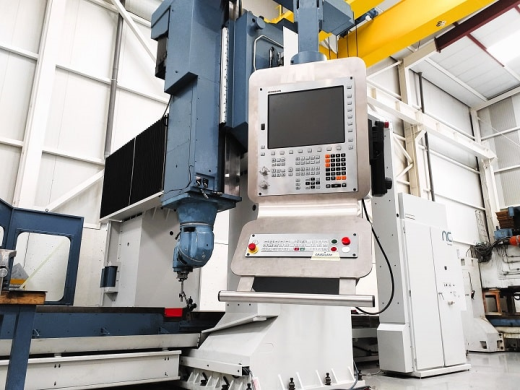

Photo 2

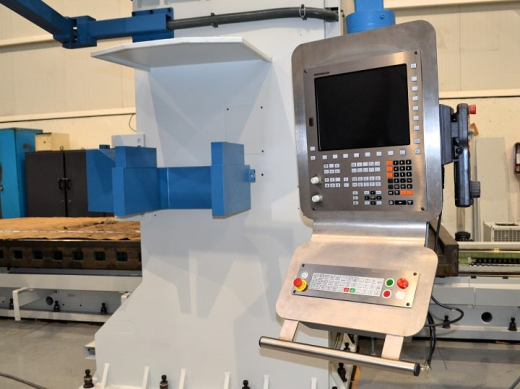

Photo 3

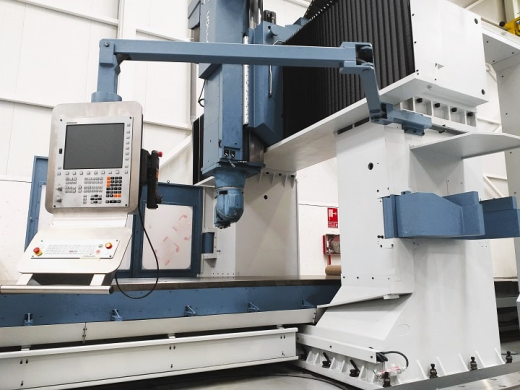

Photo 4

Control: NUEVO/NEW HEIDENHAIN TNC-320
Year: 1996

• Table dimensions: 6000 x 2000 mm
• Number of T slots: 13
• T slots dimensions: 22 mm

• X axis traverse: 6000 mm
• Y axis traverse: 3800 mm
• Z axis traverse: 1000 mm
• Vertical capacity (VC): 500 / 1500 mm (direct exit)
• Distance between columns: 3100 mm

• Universal head UM40 (Body B: manual / Body C: 3º auto-indexing) & Direct spindle
• Tool clamping system: Hydraulic
• Taper nose: ISO50 (DIN-69871)  /  Pull stud: DIN-96872
• Speed range: 3000 rpm
• Spindle power: 30 kW

• Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min

• Machine weight approximate: 50000 Kg
• Maximum weight on table: 15000 kg
• Machine dimensions approximate: 14740 x 5330 x 5050 mm

• Guarding: 2 sliding doors with a new perimetral wire-mesh safety fence
• Head changer: automatic with lateral hinge/support in column
• Chip conveyor: 2 longitudinal pallets
• Electronic handwheel: New HR-510
• Coolant: External & Internal high pressure through spindle (internal only with direct exit head)
