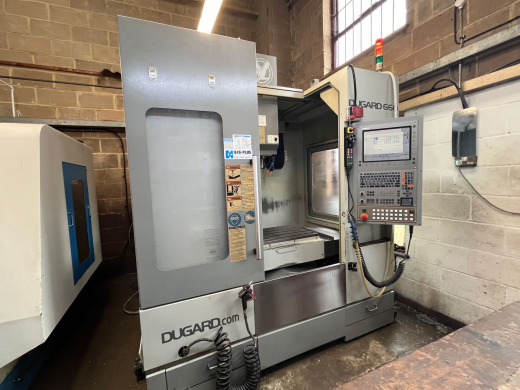

DUGARD 660 VMC Vertical Machining Centre Heidenhain 530 (2011)

Photo 1

Photo 2

Photo 3

Photo 4

Excellent Condition

Big-Plus spindle system - 24 tool Position

Technical attributes
Z-motion 510 mm
X-motion 660 mm
Y-motion 530 mm

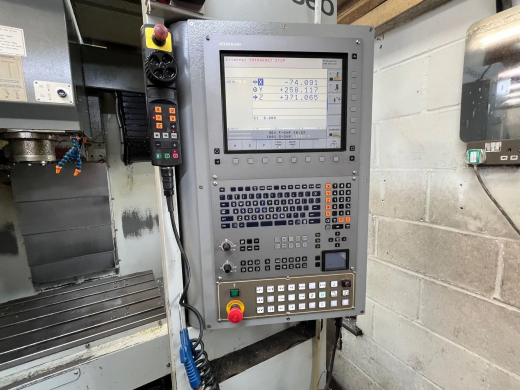

Control Heidenhain iTNC530

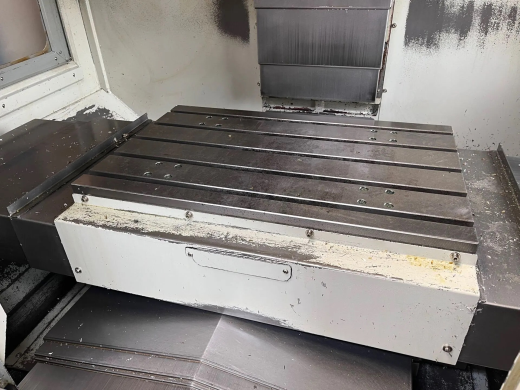

Table surface area l x w 810x510 Approx.
Taper BT40
Tool changer positions 24
Power capacity - spindle 11 kW
Spindle speed range 10 - 10000 rpm
Rapid motion 30 m/min
Weight approx. 5000 kg
Approx. Dimension. (lx w x h)2300x2000x2600 mm
Year of construction 2011


Category: Machining centres

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 May 2025
