CORREA DIANA 20 - 624092 CNC Milling machine - Bed type

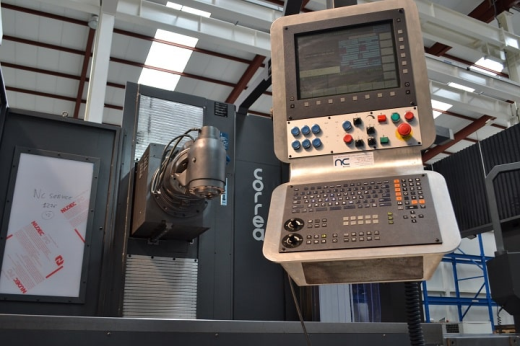

Photo 1

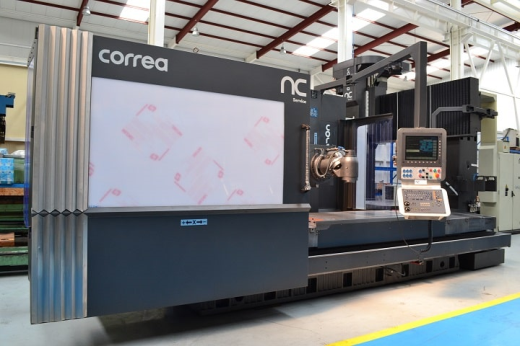

Photo 2

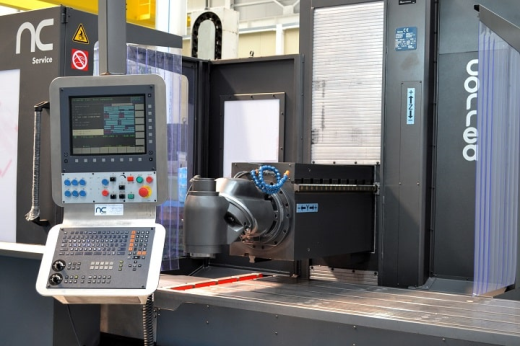

Photo 3

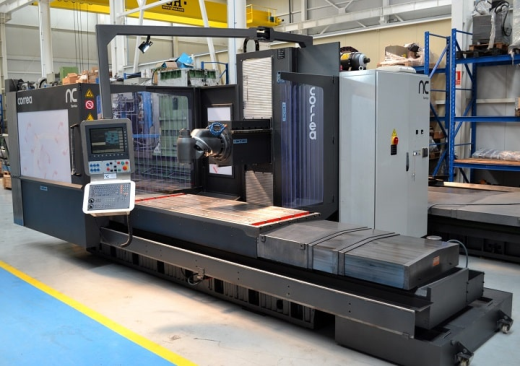

Photo 4

Control: HEIDENHAIN TNC-i530
Year: 2011

• Table dimensions: 2300 x 900 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2000 mm
• Y axis traverse: 1000 mm
• Z axis traverse: 1000 mm

• Head type: Manual milling head (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
• Speed range: 20 - 3000 r.p.m. (4000 r.p.m.)
• Spindle power: 22 kW

• Rapid feedrate (X-Y-Z):   20000 mm/min

• Maximum weight on table: 3500 kg
• Machine weight approx.: 14000 kg
• Machine dimensions approx.: 6114 x 5070 x 2803 mm

• External coolant
• Electronic handwheel: HR-510
• New foot clamping tool pedal
• Guarding and new perimetral safety fence installation
