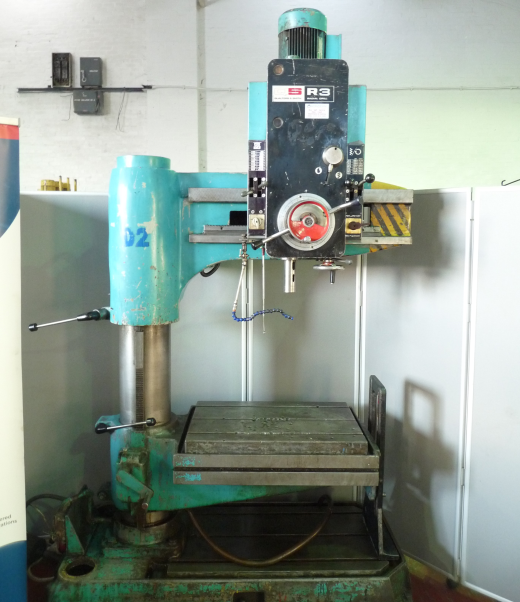

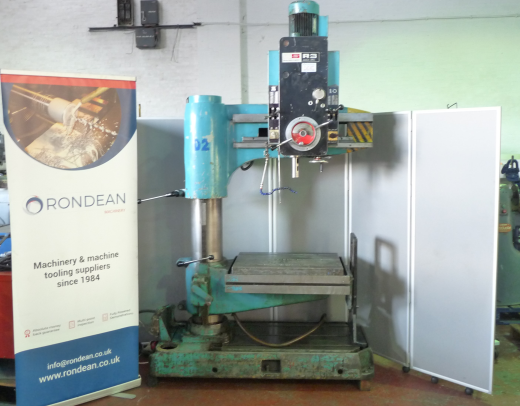

Qualters & Smith R3 Radial Arm Drill - C60704.04

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Qualters & Smith

Model
R3 Radial Arm Drill

Capacity
4 MT Spindle
33” (840mm) Maximum Spindle centre to column
8 ½” (216mm) Minimum Spindle centre to column
46” (1170mm) Length of arm (centre of column to end of arm)
10” (254mm) Travel of Spindle
28” (711mm) Maximum Spindle to table
5 ½” (140mm) Minimum Spindle to table
29 ½” x 21” (749 x 533mm) Table
12 ½” (318mm) Vertical table movement
45” (1144mm) Maximum Spindle to baseplate
35” (889mm) Minimum Spindle to baseplate
38 ¼” x 26” (970 x 660mm) Baseplate

Feeds
9: .003 -.036 in/rev (.076-.914 mm/rev

Speeds
12: 60-1750 rpm

Safety
Brake & telescopic trip

Main Motor
3HP (2.2 kW)

Power
Three Phase Electric's

Dimensions
1550 x 660 x 2590mmm high 1850kg

Category: Drilling

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 19 May 2025
